TROTEC TTK Qube – Compact Professional Dehumidifier with Condensate Pump (16 litres/day)

The TROTEC TTK Qube is a compact professional refrigerant dehumidifier (condensation dryer) with an integrated condensate pump and a space-saving stackable cube design. Built for water-damage restoration and construction drying, it extracts up to 20 l/24 h (16 l/24 h at 30 °C / 80 % RH) with high dust and moisture protection for demanding jobsite use.

How it works

The TTK Qube dries the air by condensation. A powerful fan pulls up to 283 m³/h of humid air across a cold evaporator, where the water vapour condenses on the coil. Instead of collecting in a tank, the condensate is removed automatically by the built-in pump, which lifts it up to 10 m to a drain or out of the building — so the unit runs unattended around the clock. The cube housing is sealed for high dust and moisture protection, and a MID-compliant dual meter logs both operating hours and energy, ideal for rental billing.

Key benefits

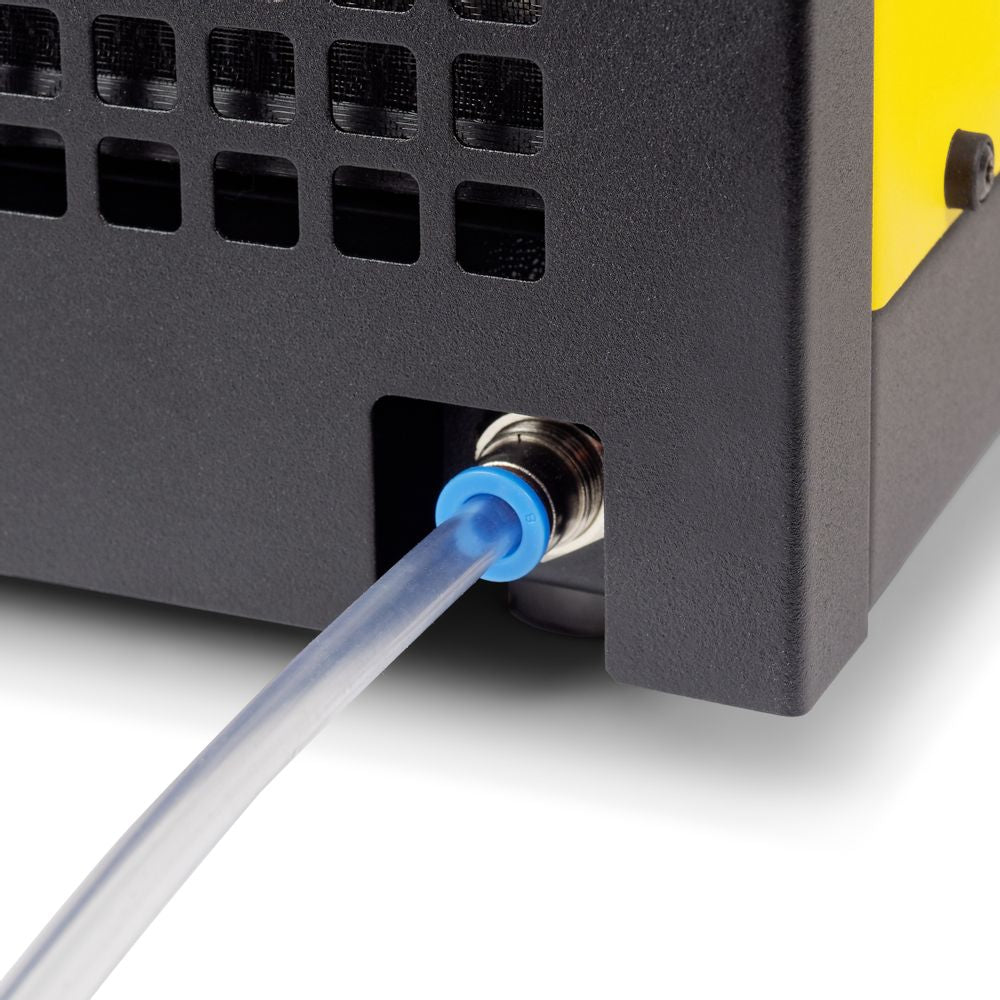

• Integrated condensate pump — lifts water up to 10 m for true continuous, tank-free operation on site.
• High airflow — 283 m³/h moves large air volumes quickly through the drying cycle.
• Rugged jobsite build — sealed cube design with high dust and moisture protection for restoration work.
• Stackable cube design — space-saving to transport, store and deploy in fleets.
• Billing-ready metering — MID-compliant dual meter records operating hours and kWh for transparent rental invoicing.
• Low-GWP refrigerant — runs on R1234yf.

Typical applications

• Water-damage restoration and flood recovery
• Construction drying on active building sites
• Equipment rental and hire fleets
• Facility and property management
• Insurance and remediation contractors

Technical data

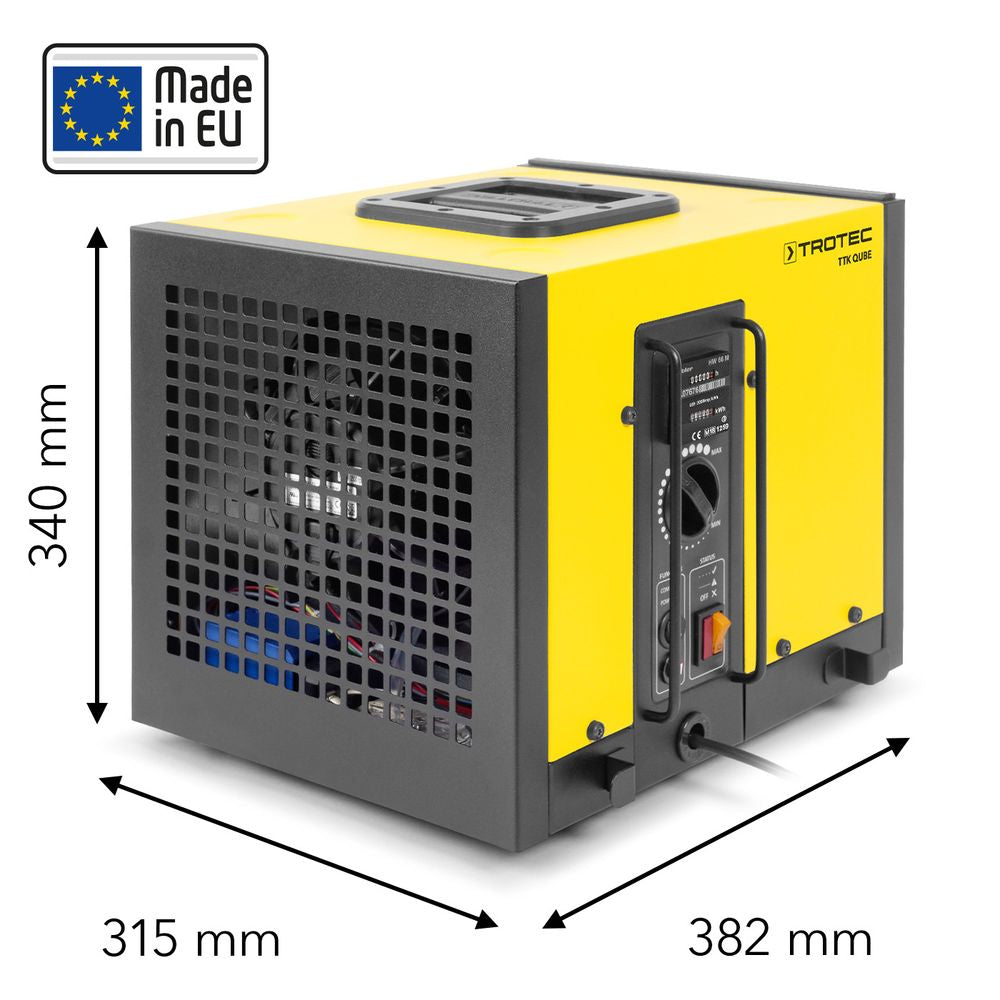

• Dimensions (L × W × H): 315 × 382 × 340 mm
• Weight: 16 kg
• Dehumidification capacity: 16 l/24 h (at 30 °C / 80 % RH) · max. 20 l/24 h
• Air flow: 283 m³/h
• Power: 0.362 kW · 220–240 V, 50 Hz · 1.7 A
• Sound level: 53 dB(A)
• Working range: 5–35 °C, 40–90 % RH
• Suitable room size: up to 45 m² / 110 m³
• Refrigerant: R1234yf
• Features: integrated condensate pump (delivery head up to 10 m), stackable cube design, MID-compliant dual meter (hours + kWh), high dust/moisture protection
• Article no.: 1.120.000.117

Genuine TROTEC equipment — CE marked and supplied with full manufacturer documentation by BMB Rheinland, your authorised TROTEC distributor.

Planning a project or a larger requirement? Request a quote.

Downloads

• 📄 User Manual — TTK Qube (EN)
• 📄 CE Declaration of Conformity — TTK Qube (EN)
• 📰 Case Study — ENAIRE Airport Tower (EN)
