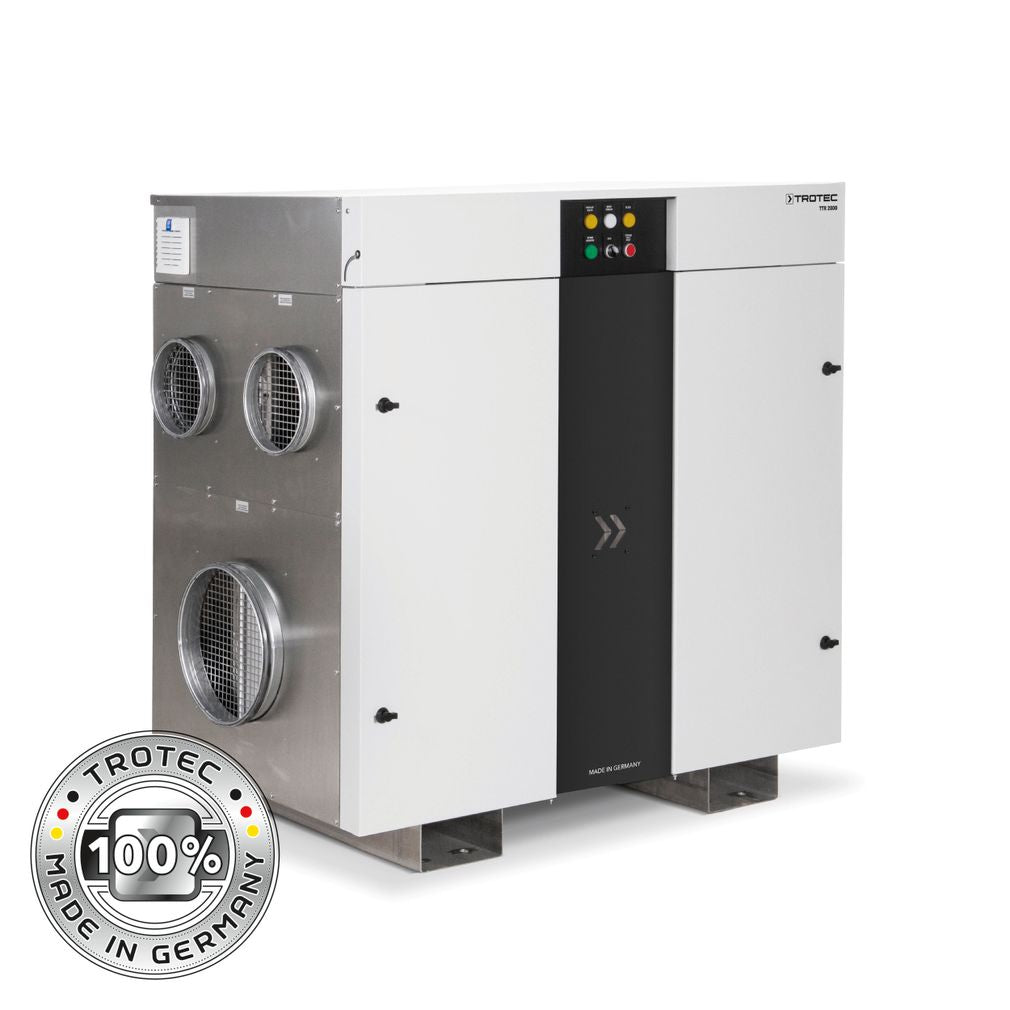

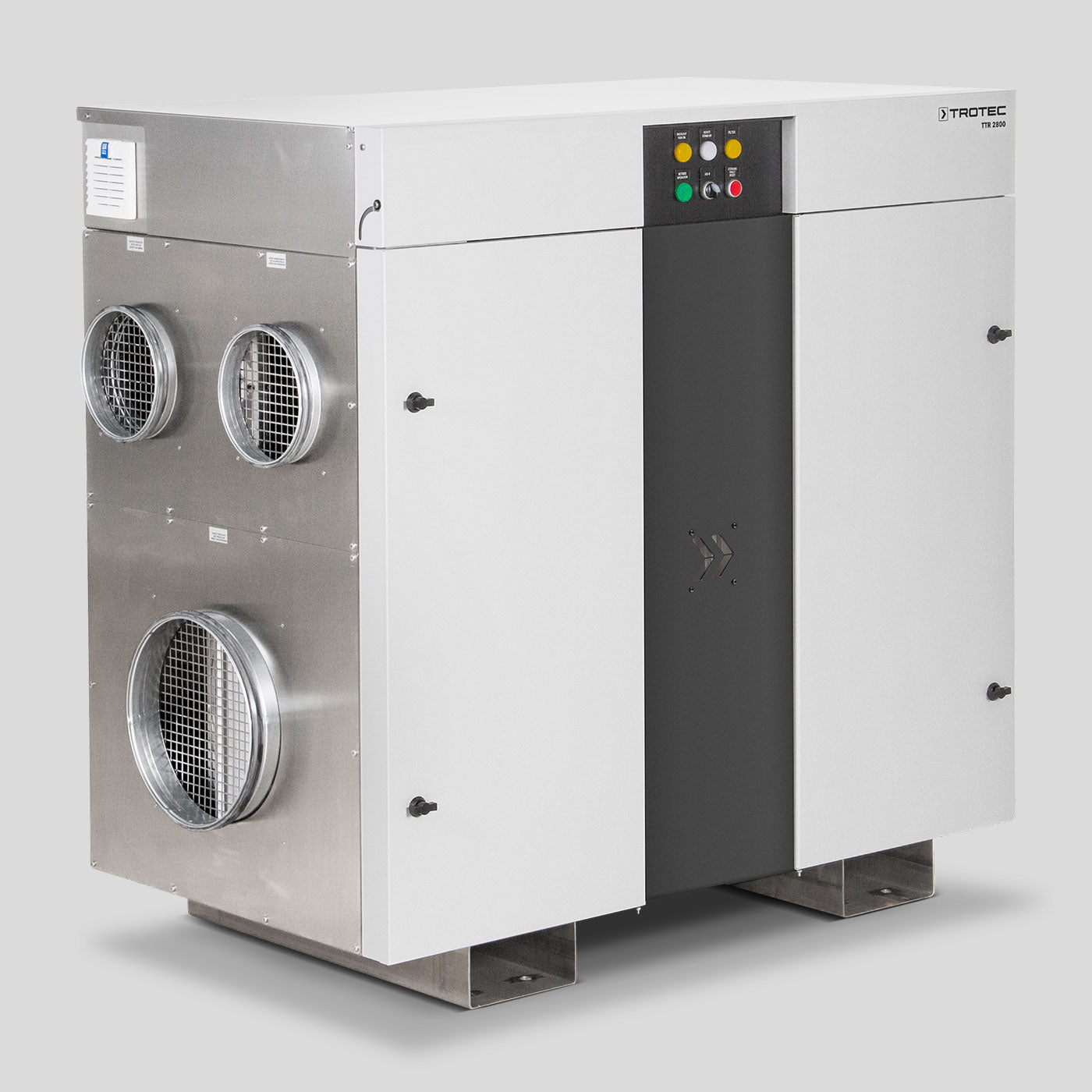

TROTEC TTR 2800 – Stationary Industrial Desiccant Dehumidifier
- Made in Germany · CE marked
Project item — manufactured to order: typical lead time 3–4 months, shorter where standard units are available. Configuration and manufacturer accessories are specified with your quotation; we support sizing, framework agreements and tenders, and confirm the exact schedule on order.
Please confirm availability before ordering. This is a project unit supplied to order, not a shelf item. Email sales@bmbrheinlandgmbh.com with your quantity and delivery location and we will confirm the current availability and delivery date, normally within one business day.
The TROTEC TTR 2800 is a stationary adsorption (desiccant) dehumidifier engineered for permanent, ducted installation in continuous industrial process drying. It delivers a nominal 2,800 m³/h of dry air and removes up to 15.7 kg of moisture per hour, holding stable low dew points even where the air is cold and already dry — precisely the conditions in which refrigerant dehumidifiers lose their effectiveness.
How it works
At the heart of the machine is a slowly rotating desiccant rotor impregnated with a hygroscopic silica-gel medium. The process air passes through one sector of the rotor, where water vapour is adsorbed onto the desiccant; a separate, heated regeneration air stream then drives that moisture back out of the rotor and carries it outside as humid exhaust. Because adsorption does not depend on condensation, the TTR 2800 continues to dry reliably at low temperatures and very low relative humidity, reaching dew points far below what a condensation dryer can achieve.
Key benefits
- Deep, stable drying — maintains consistent low dew points independent of ambient temperature.
- Continuous process duty — engineered for round-the-clock operation rather than intermittent site drying.
- High air throughput — nominal 2,800 m³/h, with up to 3,150 m³/h available for ducted distribution.
- Permanent integration — designed for fixed installation with ducted process and regeneration air.
- Building-management ready — BACnet and further integration options available on request.
- German engineering — Made in Germany, supplied with full manufacturer documentation.
Typical applications
- Pharmaceutical and food production requiring controlled low humidity
- Freeze-drying and downstream dry-process lines
- Long-term dry storage and archive or warehouse humidity control
- Waterworks and technical rooms prone to condensation
Technical data
- Article number: 1110003175
- Dry air volume flow (nominal): 2800 m³/h
- Air volume flow (max.): 3150 m³/h
- Dehumidification capacity: 15.7 kg/h (376.8 kg/24h) at 20 °C / 60 % r.h.
- Power supply: 3/PE/380–480 V, 50–60 Hz
- Power consumption: 21.6 kW
Genuine TROTEC equipment — CE marked and Made in Germany, supplied with full manufacturer documentation by BMB Rheinland, your authorised TROTEC distributor.
Planning a project or a larger requirement? Request a quote.
