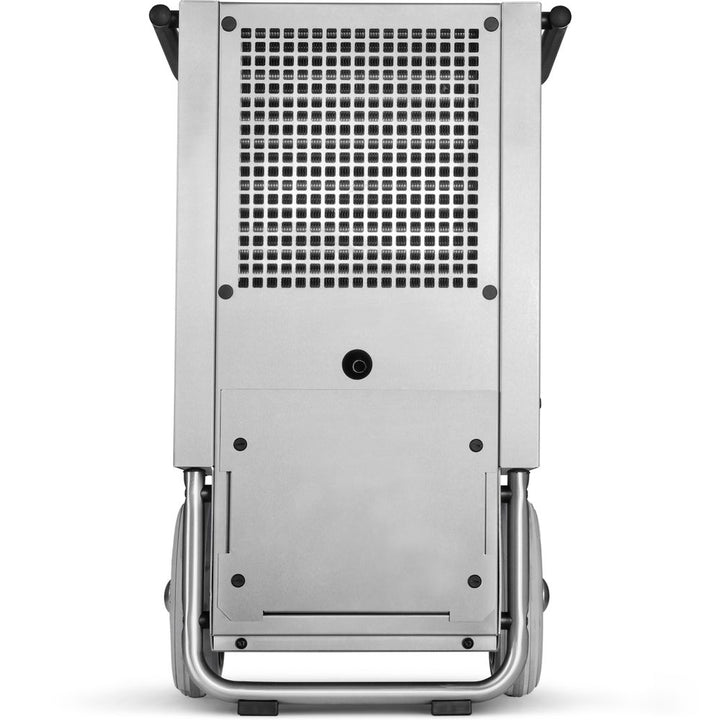

TROTEC TTK 500 ES Edelstahl Seitenansicht
TROTEC TTK 500 ES Detail
TROTEC TTK 500 ES Seitenansicht
TROTEC TTK 500 ES Detail
TROTEC TTK 500 ES Bedienfeld
TROTEC TTK 500 ES Rückansicht
TROTEC TTK 500 ES Anwendung
TROTEC TTK 500 ES Edelstahl Bautrockner
TROTEC TTK 500 ES Edelstahl Seitenansicht
TROTEC TTK 500 ES Detail
TROTEC TTK 500 ES Seitenansicht
TROTEC TTK 500 ES Detail
TROTEC TTK 500 ES Bedienfeld
TROTEC TTK 500 ES Rückansicht
TROTEC TTK 500 ES Anwendung

TROTEC TTK 500 ES – Stainless Steel Commercial Dehumidifier (58 litres/day)

€3.350,00 €3.181,95 Save 5%
/
Tax included. Shipping calculated at checkout.
€2.673,91 net  +  €508,04 VAT (19%)
€3.181,95 incl. VAT · free shipping in Germany
For EU customers with a valid VAT-ID, VAT is automatically removed at checkout (reverse charge under Section 6a UStG). Non-EU shipments are zero-rated as exports.

Available to order: typical lead time 5–10 working days. We confirm the exact date after your order or enquiry.

The TROTEC TTK 500 ES is the stainless-steel (Edelstahl) edition of the TTK 500 commercial condensation dehumidifier, engineered for hygiene-sensitive and chemically aggressive environments. Its corrosion-resistant housing wipes down easily while the unit extracts up to 58 l/24 h (at 30 °C / 80 % RH), and up to 70 l/24 h at maximum.

How it works

The TTK 500 ES dries by refrigerant condensation. A fan draws moist air over a cold evaporator coil, condensing out the water vapour and draining it away before the dried air is reheated and released back into the room. Cycle after cycle the relative humidity falls — and because the entire housing is stainless steel, the machine withstands the moisture, cleaning agents and corrosive atmospheres that would attack a painted-steel unit.

Key benefits

  • Stainless-steel housing — high corrosion resistance for pools, food production and wash-down areas.
  • Hygienic and easy to clean — smooth stainless surfaces suit regulated, hygiene-critical settings.
  • Strong extraction — up to 58 l/24 h at working conditions, 70 l/24 h maximum.
  • Large coverage — handles rooms up to 380 m² / 940 m³.
  • Flexible options — stackable up to three high, with optional MID meter and condensate pump.

Typical applications

  • Food and beverage production
  • Swimming pools and wellness facilities
  • Hygiene-sensitive and corrosive environments
  • Water-damage restoration in demanding settings

Technical data

  • Dimensions (L × W × H): 438 × 470 × 870 mm
  • Weight: 52 kg
  • Dehumidification capacity: 27 l/24 h (20 °C / 60 % RH) · 58 l/24 h (30 °C / 80 % RH) · max. 70 l/24 h
  • Air flow: approx. 400 m³/h
  • Power: 1.6 kW · 220–240 V, 50 Hz · 7.3 A
  • Working range: 5–35 °C, 35–90 % RH
  • Suitable room size: up to 380 m² / 940 m³
  • Refrigerant: R454C
  • Features: stainless-steel housing (high corrosion resistance), stackable up to 3 high, optional MID meter, optional condensate pump
  • Article no.: 1.120.000.414

Genuine TROTEC equipment — CE marked and Made in Germany, supplied with full manufacturer documentation by BMB Rheinland, your authorised TROTEC distributor.
