TROTEC TTR 2000 – Stationary Industrial Desiccant Dehumidifier
- Made in Germany · CE marked
Project item — manufactured to order: typical lead time 3–4 months, shorter where standard units are available. Configuration and manufacturer accessories are specified with your quotation; we support sizing, framework agreements and tenders, and confirm the exact schedule on order.
Please confirm availability before ordering. This is a project unit supplied to order, not a shelf item. Email sales@bmbrheinlandgmbh.com with your quantity and delivery location and we will confirm the current availability and delivery date, normally within one business day.

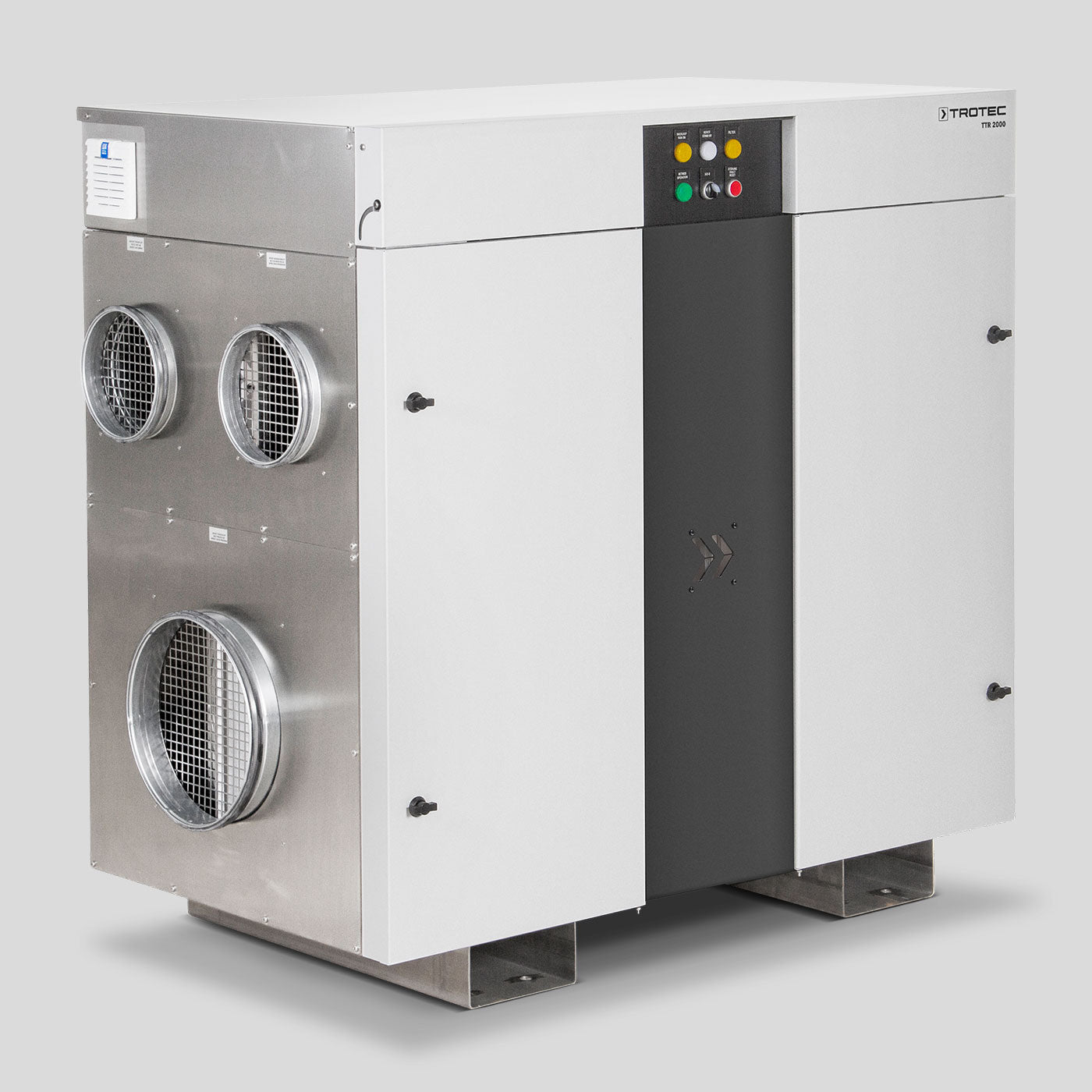

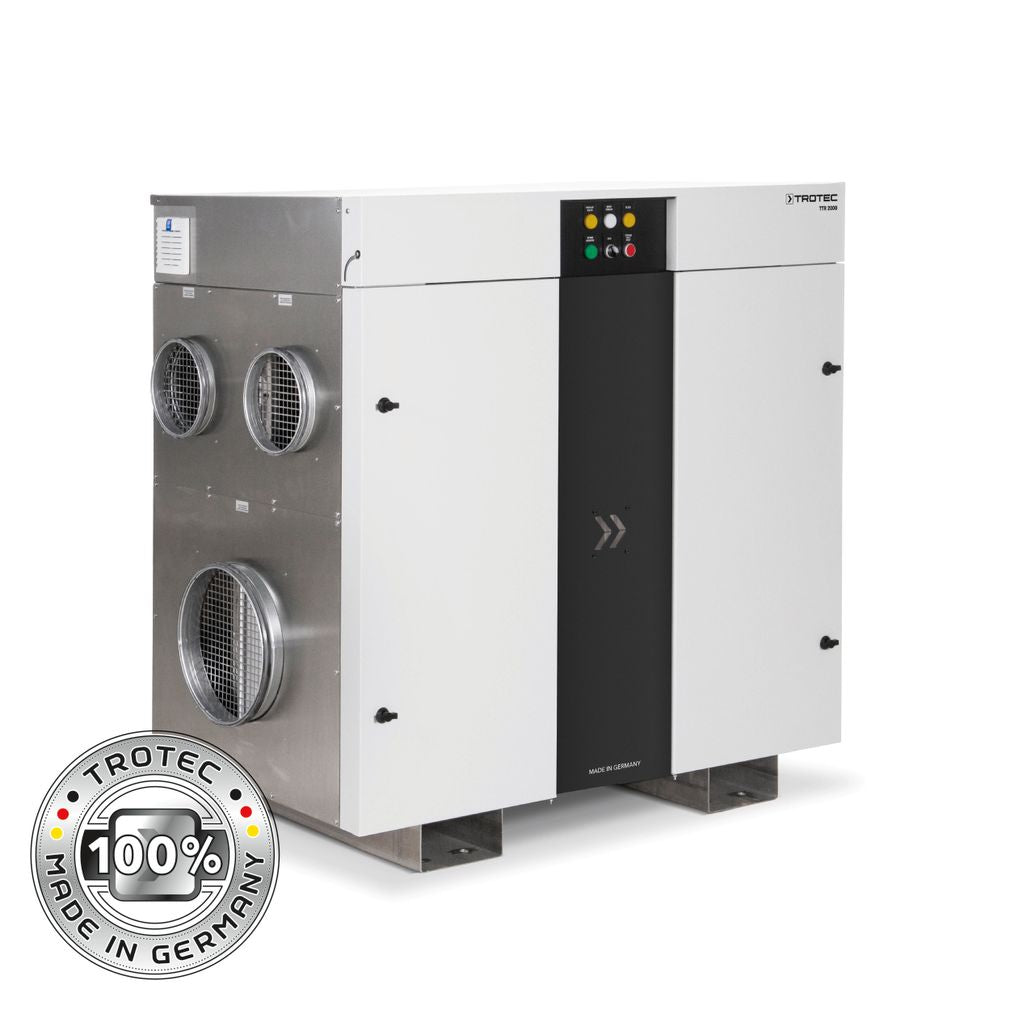

The TROTEC TTR 2000 is a high-capacity stationary industrial desiccant (adsorption) dehumidifier for large-scale continuous process duty, delivering a nominal 2,000 m³/h of dry air and up to 10.8 kg of water removal per hour. It holds stable low dew points even at low temperatures and low humidity — the operating window where refrigerant dehumidifiers fall short.
How it works
The TTR 2000 dries air by adsorption. A large volume of humid process air passes through a slowly rotating desiccant rotor that binds water vapour directly from the airstream. A separate heated regeneration airflow continuously drives the captured moisture out of the rotor and expels it, keeping the rotor re-activated for uninterrupted drying. As drying is independent of cooling below a dew point, the unit performs reliably in cold and very dry conditions.
Key benefits
- Deep, stable drying — maintains low dew points even at low temperature and low relative humidity.
- Very high continuous capacity — up to 10.8 kg/h (259.2 kg/24h) moisture removal for round-the-clock operation.
- Large dry-air output — 2,000 m³/h nominal, up to 2,350 m³/h maximum air volume flow.
- Building-management ready — integration options such as BACnet connectivity available on request.
- Three-phase industrial supply — 3/PE/380–480 V, 50–60 Hz for stable performance.
Typical applications
- Large pharmaceutical and food production requiring controlled low humidity.
- Freeze-drying and high-volume dry-storage processes.
- Waterworks and technical facilities operating at low temperatures.
- Moisture-sensitive manufacturing and packaging lines at scale.
Technical data
- Article number: 1110003171
- Dry air volume flow (nominal): 2000 m³/h
- Air volume flow (max.): 2350 m³/h
- Dehumidification capacity: 10.8 kg/h (259.2 kg/24h) at 20 °C / 60 % r.h.
- Power supply: 3/PE/380–480 V, 50–60 Hz
- Power consumption: 15.0 kW
Genuine TROTEC equipment — CE marked and Made in Germany, supplied with full manufacturer documentation by BMB Rheinland, your authorised TROTEC distributor.
Planning a project or a larger requirement? Request a quote.
