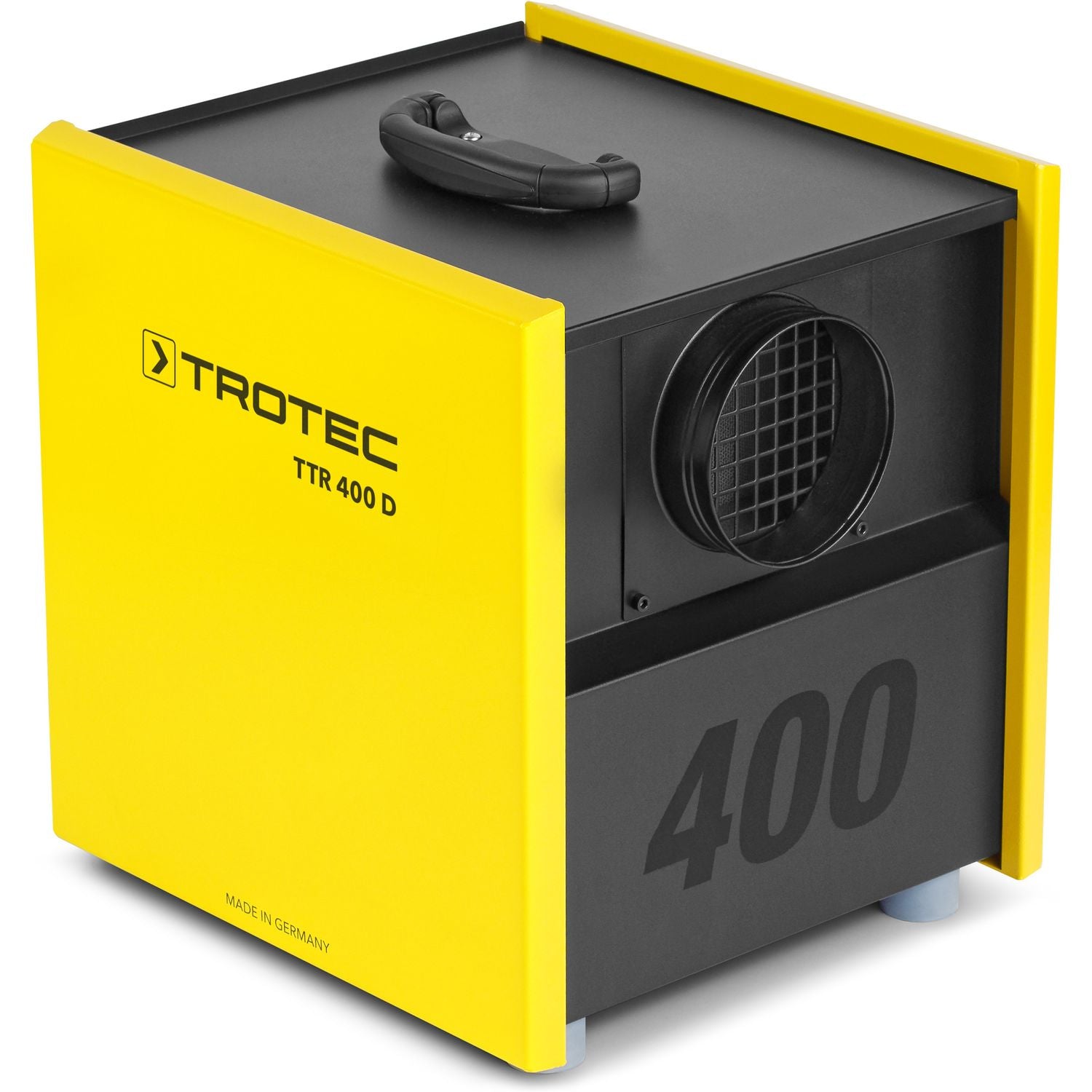

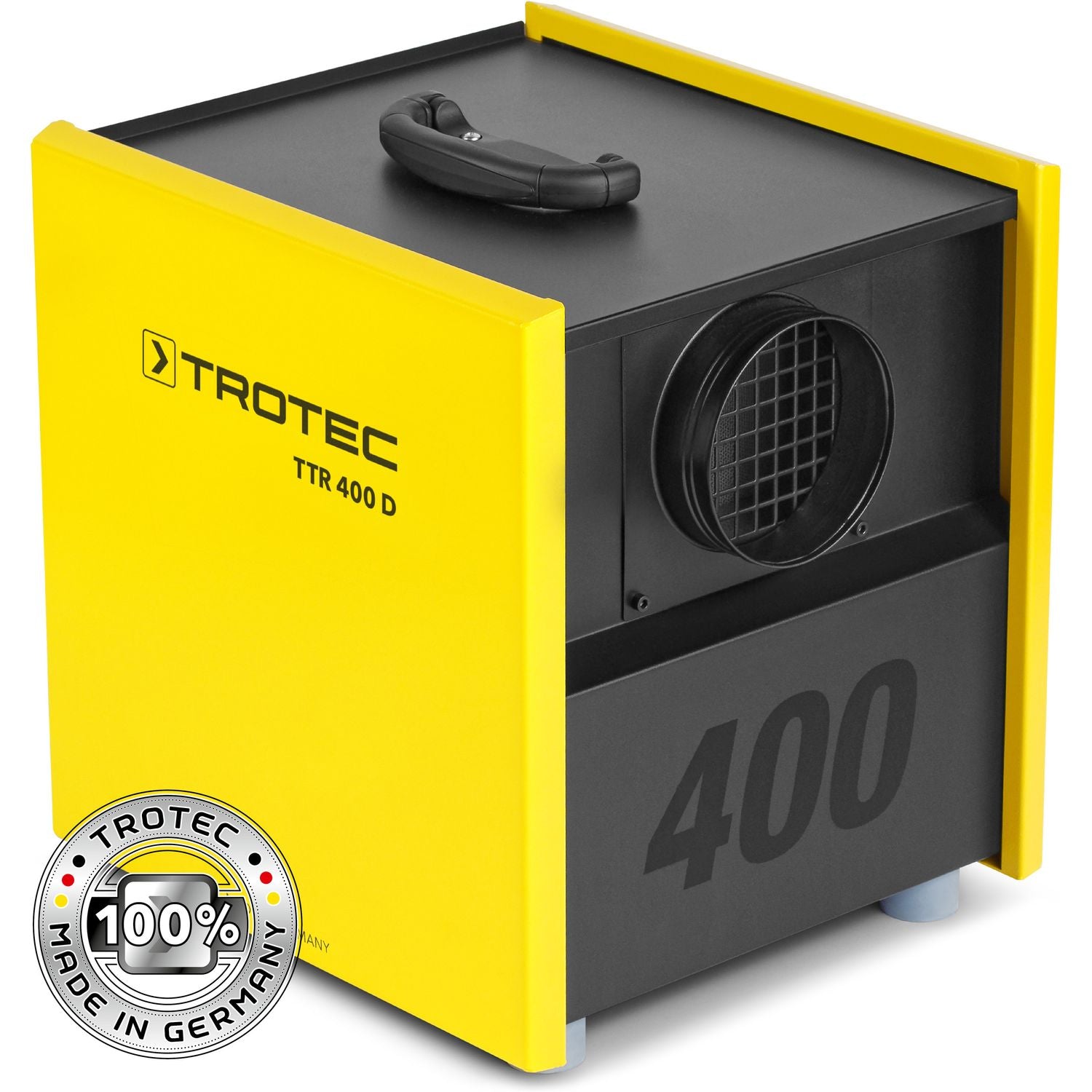

TROTEC TTR 400 D – Desiccant Dehumidifier with Dual Regeneration (1.6 kg/h)
Available to order: typical lead time 5–10 working days. We confirm the exact date after your order or enquiry.
The TROTEC TTR 400 D is a professional portable desiccant (adsorption) dehumidifier with dual regeneration for maximum drying efficiency in continuous industrial use. It removes up to 1.6 kg/h of moisture (≈ 38.4 kg per 24 h) and holds consistent output even at the lowest dew points.
How it works
Like every TTR, the 400 D dries by adsorption: process air passes through a slowly rotating rotor coated with hygroscopic silica gel that binds water vapour directly from the airstream and delivers dry air to the process. What sets this model apart is its dual regeneration — the rotor is reactivated across two separate regeneration zones instead of one, so more of the desiccant surface is working at any moment. This raises capacity and energy efficiency while keeping drying entirely independent of the dew point, making it effective in cold, unheated conditions.
Key benefits
- Dual regeneration — two regeneration zones lift capacity to 1.6 kg/h and improve efficiency versus single-regeneration units.
- Deep, stable drying — holds performance at the lowest dew points for the most demanding tasks.
- High, adjustable airflow — dry-air flow spans 130–450 m³/h for large or ducted applications.
- Low-temperature capability — effective from −15 °C in cold and unheated spaces.
- Portable industrial build — 20 kg in a 402 × 350 × 407 mm housing, movable where the work is.
Typical applications
- Continuous industrial and process drying
- Low-dew-point drying of moisture-sensitive materials
- Cold stores, archives and unheated warehouses
- Water-damage restoration and corrosion protection
Technical data

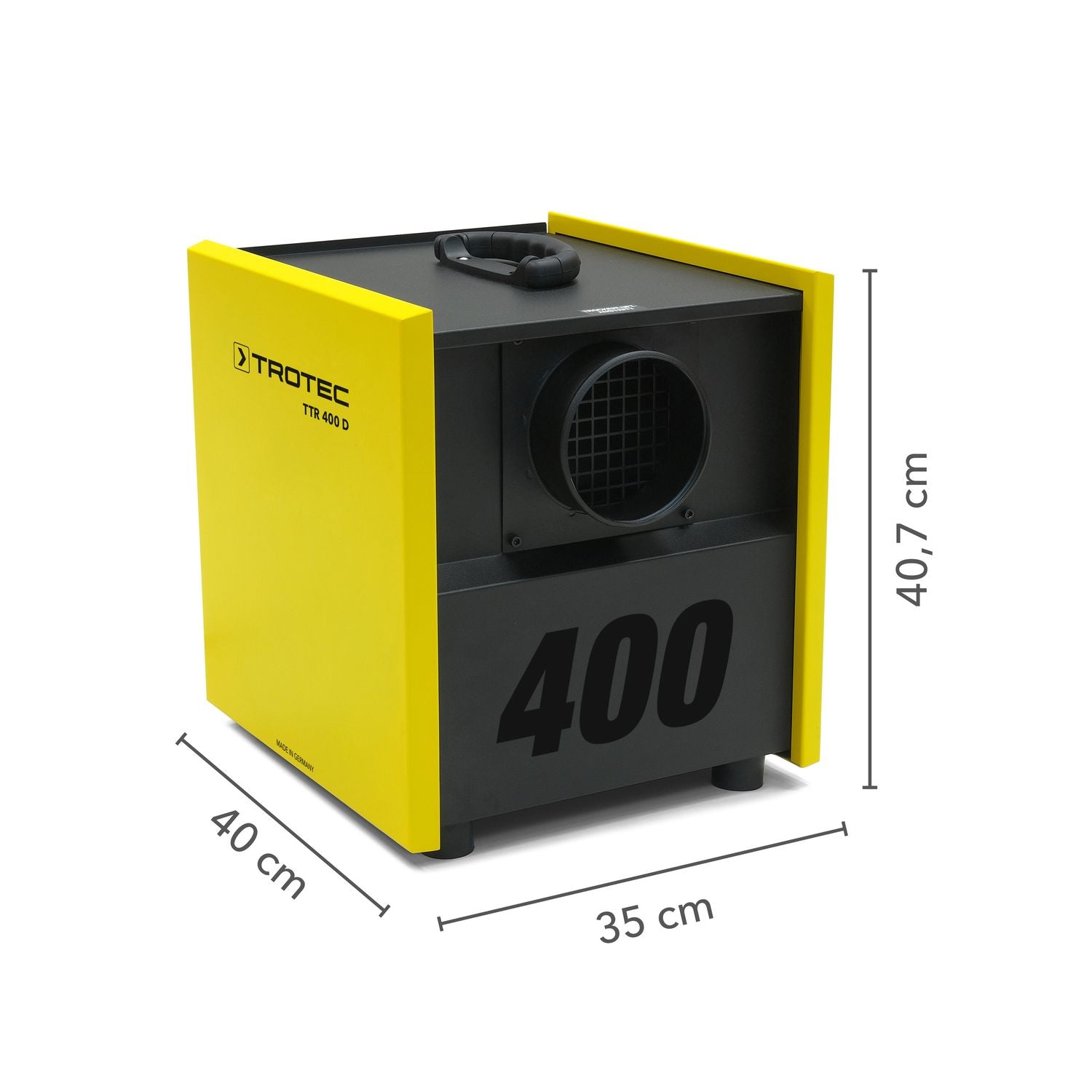

- Dimensions (L × W × H): 402 × 350 × 407 mm
- Weight: 20 kg
- Dehumidification capacity: 1.6 kg/h (≈ 38.4 kg/24 h)
- Dry-air flow: 130–450 m³/h (350 nominal)
- Power: 2.2 kW · 230 V, 50/60 Hz · 7.2 A
- Sound level: 63 dB(A)
- Working range: −15 °C to 35 °C · dual regeneration
- Article no.: 1.110.000.021
Genuine TROTEC equipment — CE marked and Made in Germany, supplied with full manufacturer documentation by BMB Rheinland, your authorised TROTEC distributor.
