HEYLO DCD 3.0 – Dust Protection Door Complete Set (Door Widths 680–1430 mm)
Available to order: typical lead time 5–10 working days. We confirm the exact date after your order or enquiry.
The HEYLO DCD 3.0 is a dust-protection access door that lets workers walk in and out of a sealed containment without letting dust escape. It clamps into existing frames without taping and adapts to door widths from 680 to 1430 mm, making it the standard passage for any dust barrier or sheeting partition.

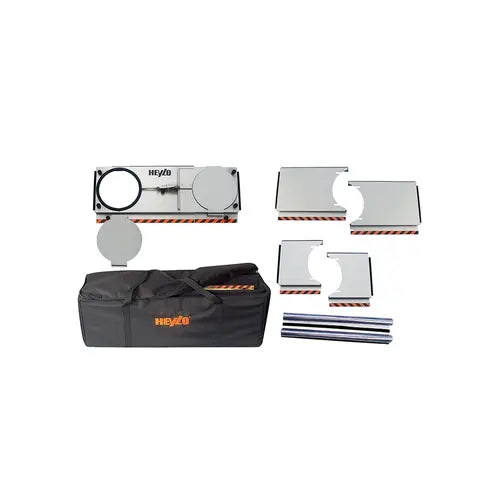

What's in the set

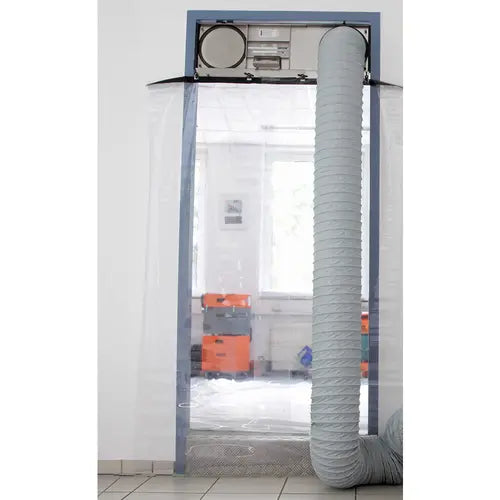

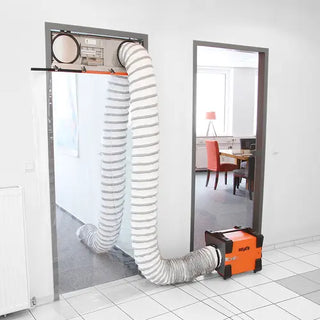

The DCD 3.0 is a passive containment component — it has no fan of its own. A rigid base element mounts into the doorway with quick-release clamps, and two PVC foils with hook-and-loop fastening form a self-closing, zip-through flap so personnel pass through the barrier while it stays sealed. Two integrated Ø 205 mm extraction openings let you connect a HEYLO PowerVent fan or PowerFilter air cleaner: extract dust at source into class-M dust bags, or draw the zone to negative pressure with HEPA filtration for hazardous-substance and mould work.

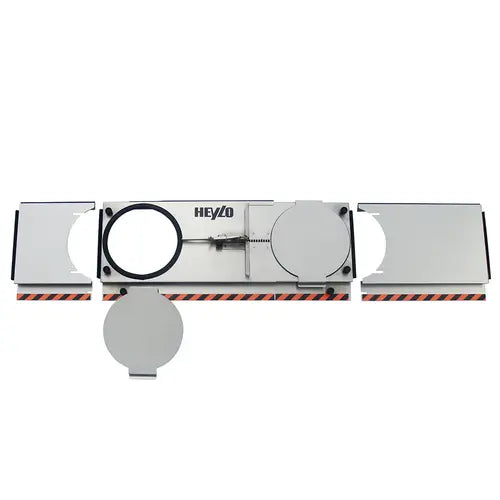

- Base door element (door widths 680–830 mm)
- 4 door adaptors (extends to 1430 mm total width)

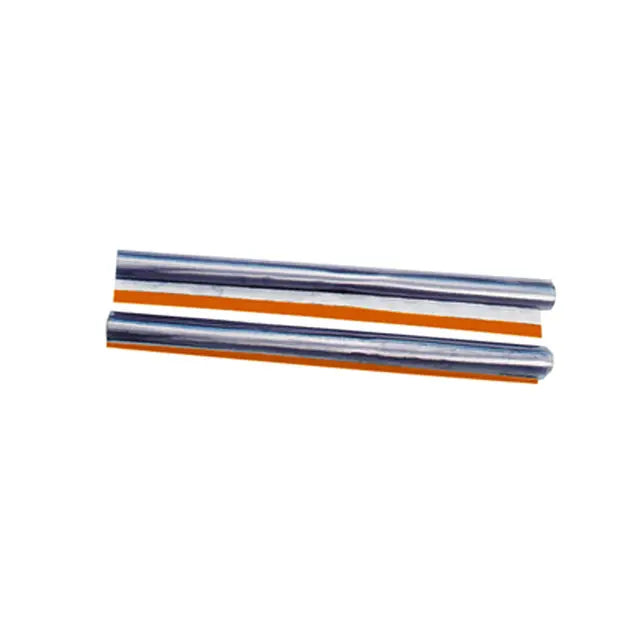

- 2 PVC foils with hook-and-loop fastening
- 1 transport bag
Key benefits
- Tape-free mounting — quick-release clamps fix the door into existing frames in seconds and remove without residue.
- Wide adjustment range — four adaptors cover door widths from 680 to 1430 mm from one set.
- Sealed pass-through — hook-and-loop PVC foils keep the barrier closed while people and materials move through.
- System-ready extraction — two Ø 205 mm ports connect PowerVent fans or PowerFilter cleaners for source extraction or negative pressure.
- Portable — packs into a single transport bag for fast redeployment.
Typical applications
- Dust-tight door sealing during renovation and restoration
- Mould and hazardous-substance remediation with negative-pressure zoning
- Access control into sealed containment areas on occupied sites
- Public-sector and commercial refurbishment in live buildings
Technical data
- Base element: 680–830 × 300 × 81 mm
- Extraction openings: 2 × Ø 205 mm
- Weight (set): approx. 17 kg
- Compatible units: HEYLO PowerVent fans, PowerFilter air cleaners (M/H filtration)
- Article no.: 1110973
Original HEYLO equipment (Dantherm Group) — supplied with full manufacturer documentation by BMB Rheinland, your authorised distribution partner.
