HEYLO DCS PF 1000 – Complete Negative-Pressure Dust Protection System (917 m³/h)
Available to order: typical lead time 5–10 working days. We confirm the exact date after your order or enquiry.
The HEYLO DCS PF 1000 is a complete negative-pressure containment system that pairs the DCD 3.0 dust-protection door with the PowerFilter 1000 air cleaner (917 m³/h). It holds the work zone below the surrounding air pressure so fine dust cannot escape to occupied areas — the standard approach for controlled remediation.
How it works

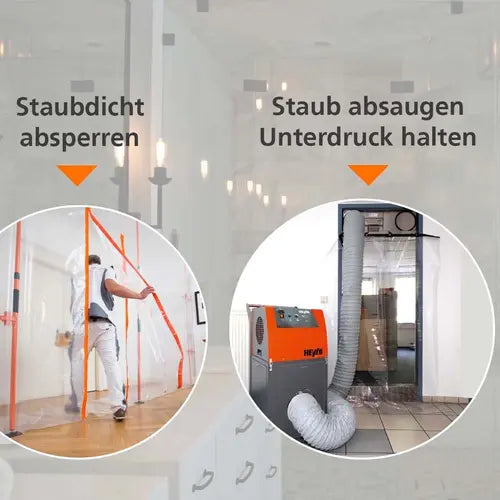

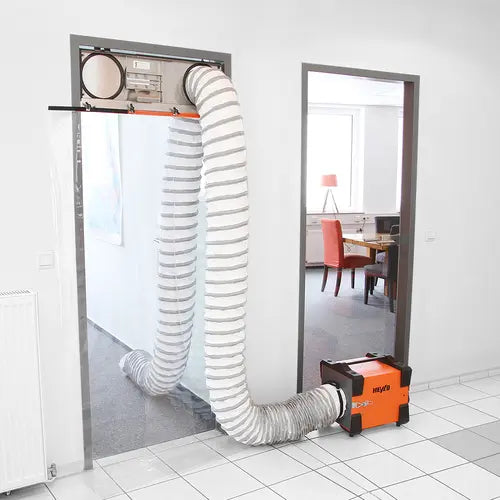

The PowerFilter 1000 stands in the clean area and continuously extracts air from the sealed work zone through the DCD 3.0 door. Because more air is drawn out than can leak back in, the zone is held at negative pressure (under-pressure) — every gap draws inward, so airborne dust stays inside the containment. The extracted air passes a coarse pre-filter and an F9 fine-dust main filter (dust class M) before being returned clean; fitting the optional HEPA H14 (class H) filter cleans the air to the standard required for mould and hazardous-substance work.
What's in the set

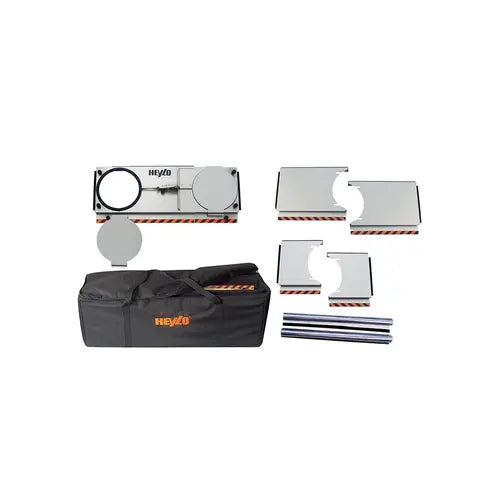

- DCD 3.0 door base element + 2 PVC foils + transport bag

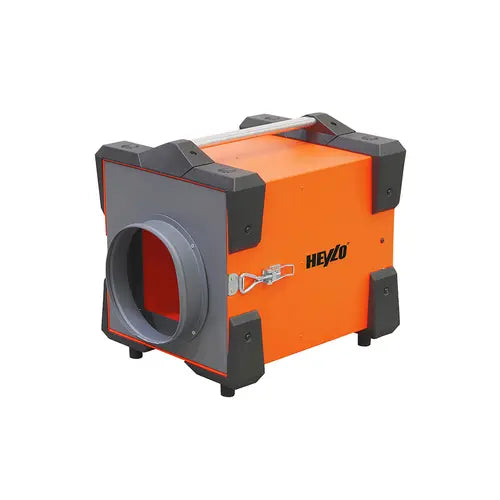

- PowerFilter 1000 air cleaner
- Coarse-dust pre-filter + F9 fine-dust main filter (dust class M)
- Air hose 7.6 m (Ø 205 mm)
Key benefits
- True negative pressure — keeps fine dust locked inside the work zone, protecting adjacent rooms.
- HEPA-upgradeable — swap to H14 (class H) for mould and hazardous-substance remediation.
- Two-stage filtration — coarse pre-filter plus F9 main filter protects the fan and extends filter life.
- Quiet operation — ≤ 66 dB(A) at 3 m suits occupied and sensitive environments.
- Complete kit — door, cleaner, filters and hose ship together, ready to run.
Typical applications
- Negative-pressure containment during renovation and refurbishment
- Mould remediation requiring HEPA filtration
- Hazardous-substance and asbestos-adjacent work zones
- Occupied buildings where fine dust must not migrate
Technical data
- Airflow: max. 917 m³/h · 760 m³/h with F9 (M) · 515 m³/h with H14 (H)
- Power: 0.185 kW · 230 V · 1.33 A
- Sound level: ≤ 66 dB(A) at 3 m
- Hose connections: Ø 205 mm
- System dimensions: 800 × 600 × 1250 mm · weight: 35 kg
- Article no.: 1110892
