Original TROTEC HighFlow HEPA H14 Main Filter – Heat Resistant · For TAC V+, TAC M, TAC XT & TES 200
Available to order: typical lead time 5–10 working days. We confirm the exact date after your order or enquiry.

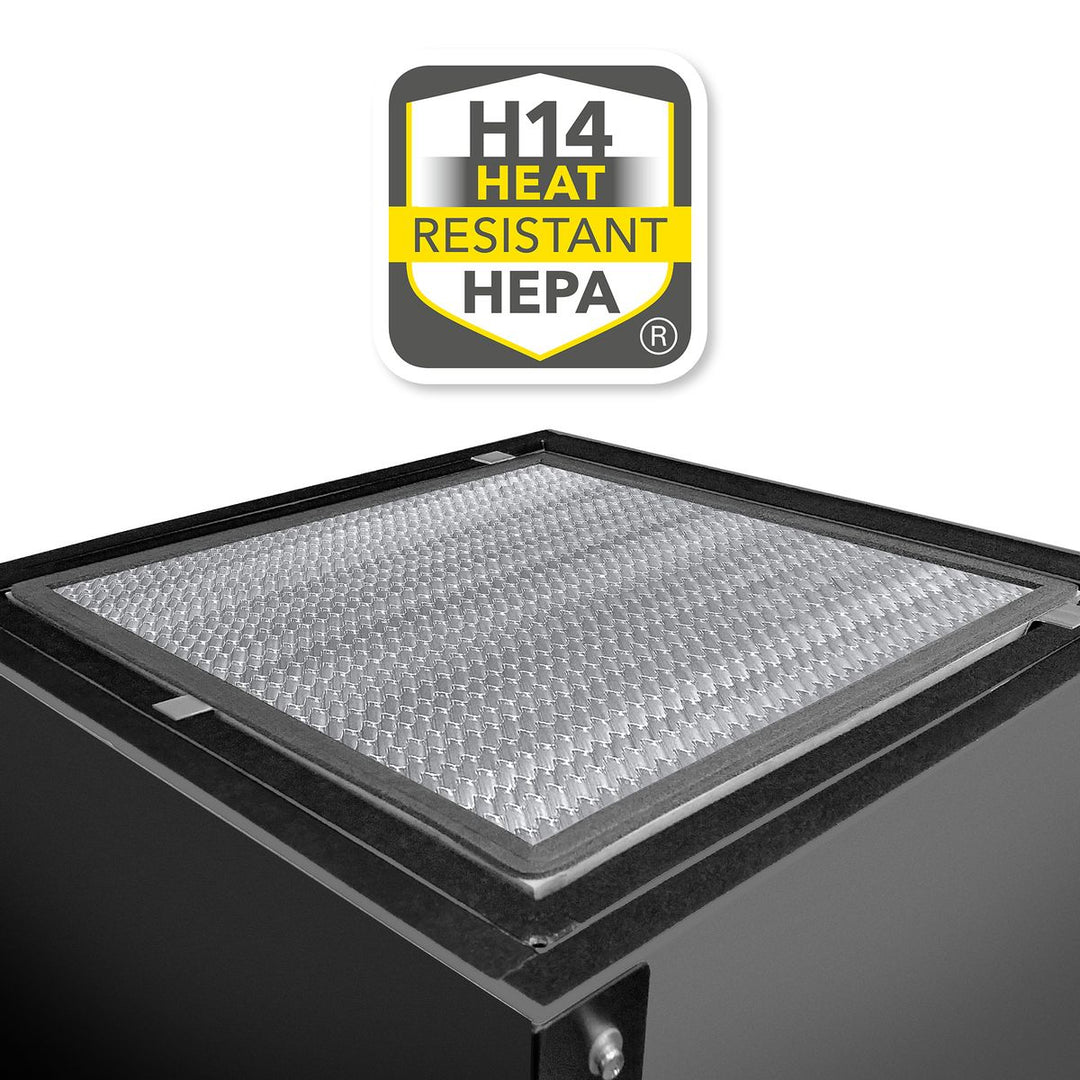

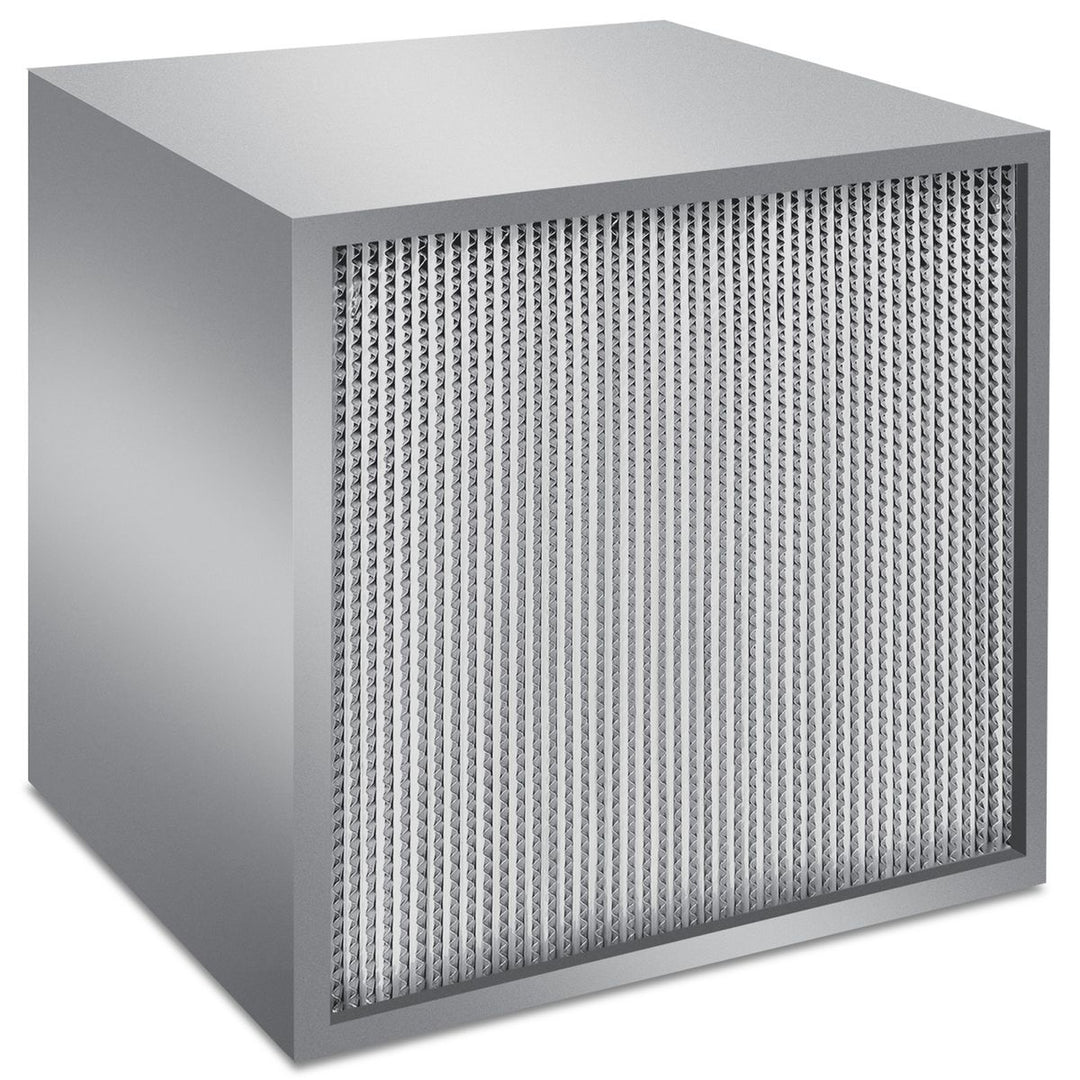

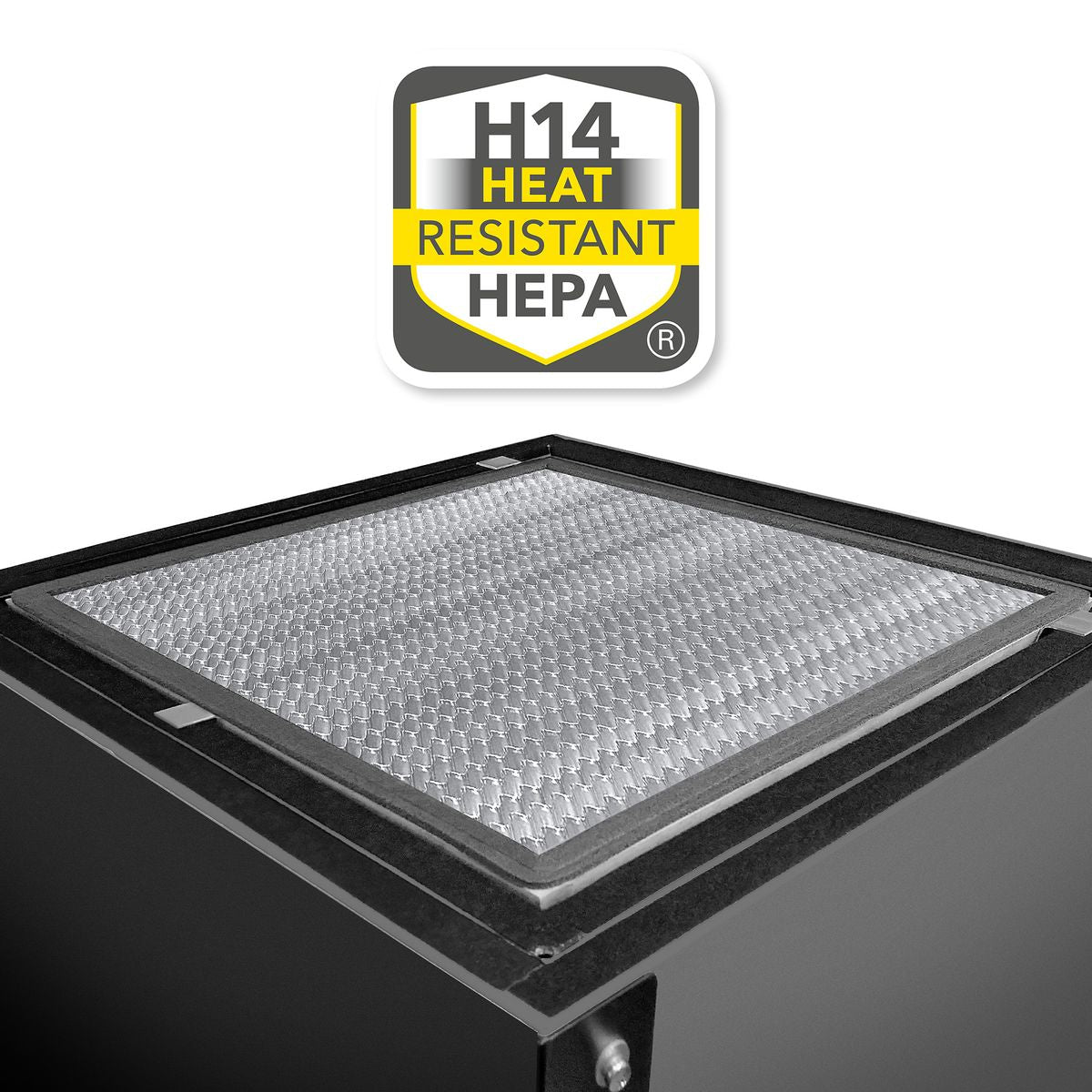

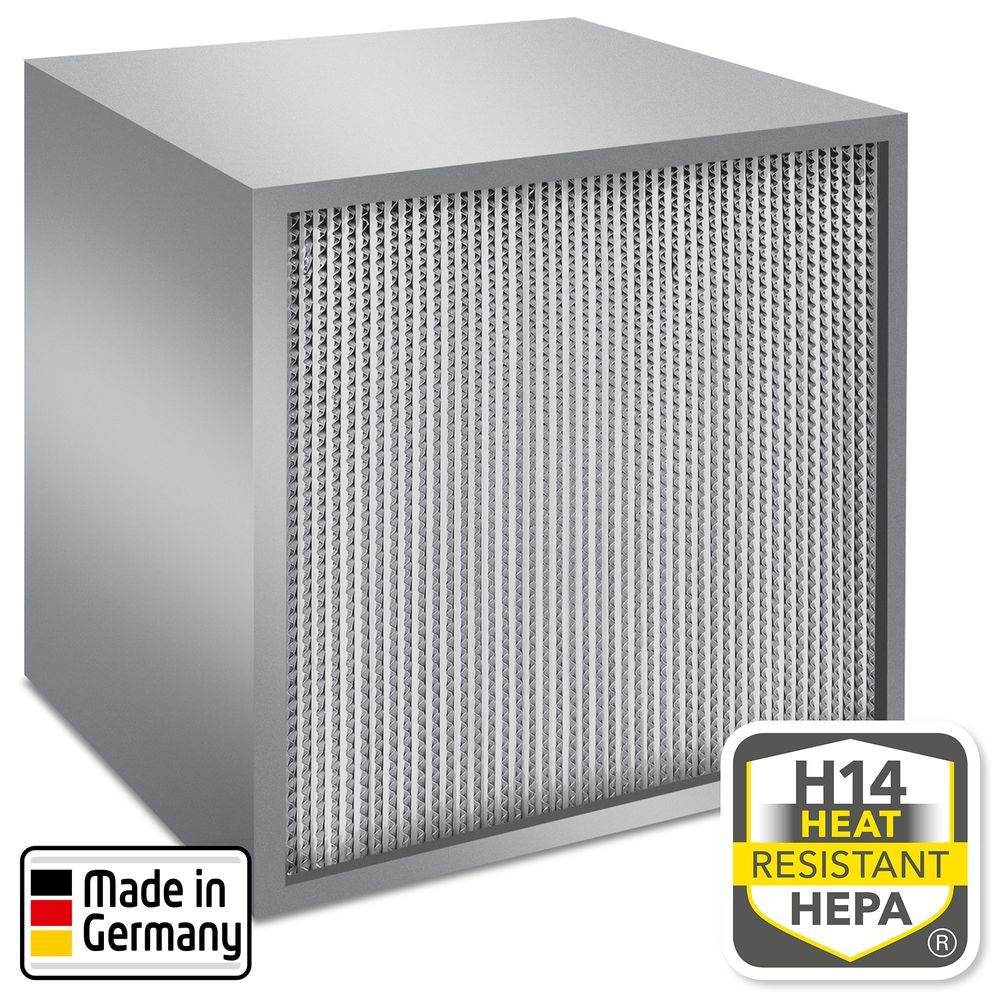

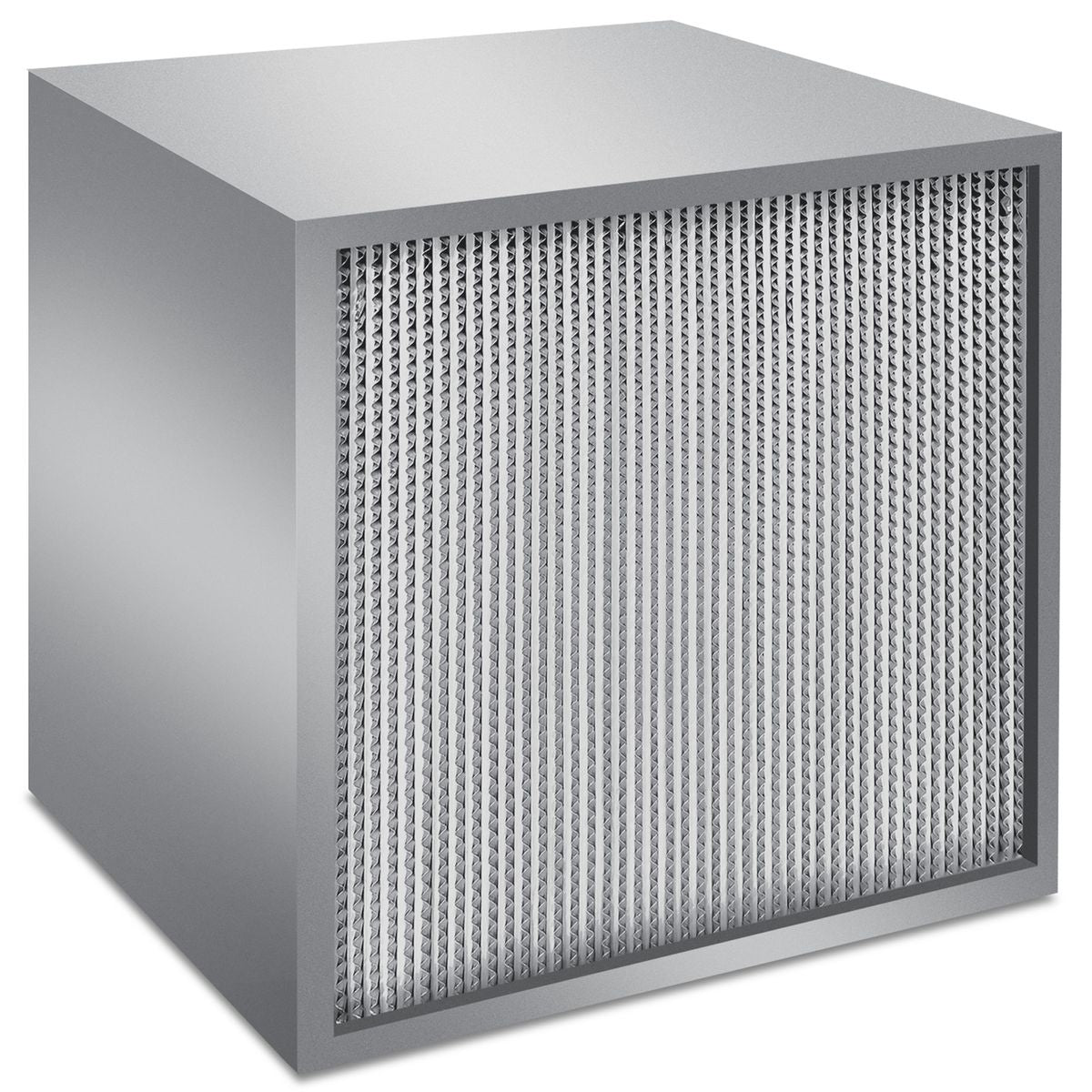

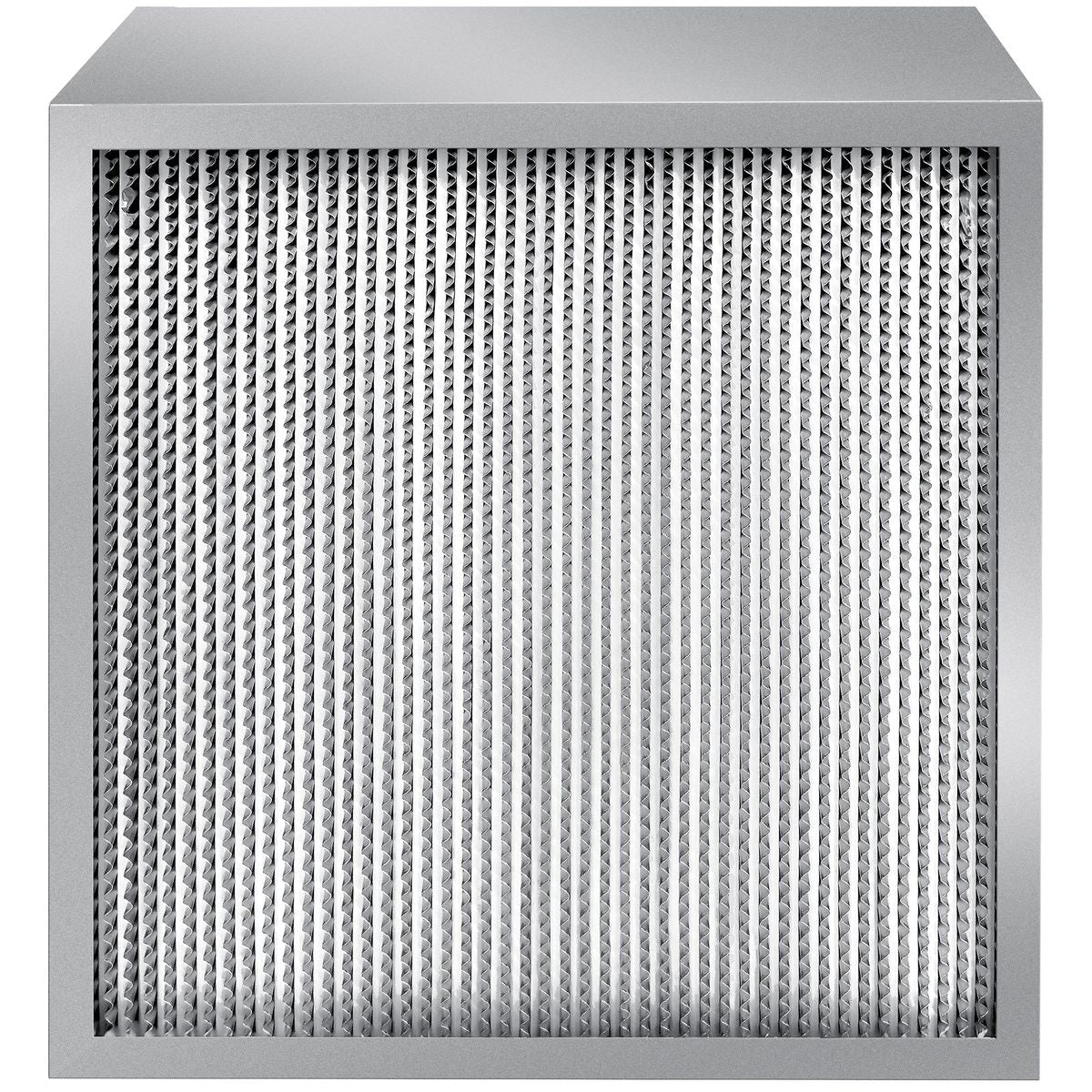

Genuine TROTEC HighFlow HEPA H14 main filter for all TROTEC TAC air cleaners — from the ECO and BASIC series up to the V+, the XT and the TES 200. This fully encapsulated, heat-resistant metal-lamella element delivers 99.995% separation at 0.1–0.2 µm and keeps your unit at its certified filtration performance.
Compatibility
- TROTEC TAC V+ — mobile unit and TAC V+ TOWER
- TROTEC TAC M — mobile unit and TAC M TOWER
- TROTEC TAC ECO, TAC ECO II and TAC ECO TOWER
- TROTEC TAC BASIC
- TROTEC TAC XT
- TROTEC TES 200 — DualDecon exhaust tower
One filter for the whole TAC family — confirmed by the manufacturer. The filter dimensions (417 × 417 × 292 mm) are identical across all TAC models. In the ECO and BASIC series the factory-standard element is the MDF-framed filter 7.160.000.113; this HighFlow version is its heat-resistant, fully metal-framed premium counterpart and fits as a direct replacement. On the TAC V+ it is the required filter type for the automatic 100 °C thermal decontamination. If you are unsure, send us the model and serial number from the type plate and we will confirm it before dispatch.
Filtration & benefits
- HEPA H14 (EN 1822): captures ≥99.995% of particles at MPPS — fine dust, aerosols and airborne carriers of viruses and bacteria.
- Heat resistant: designed for thermal decontamination cycles at 100 °C, allowing safe reuse in critical environments.
- Genuine original part: keeps the TAC unit at its rated airflow and certified filtration; regular replacement maintains suction and air quality.
- Individually tested: each filter is supplied with its own EN 1822 test certificate.

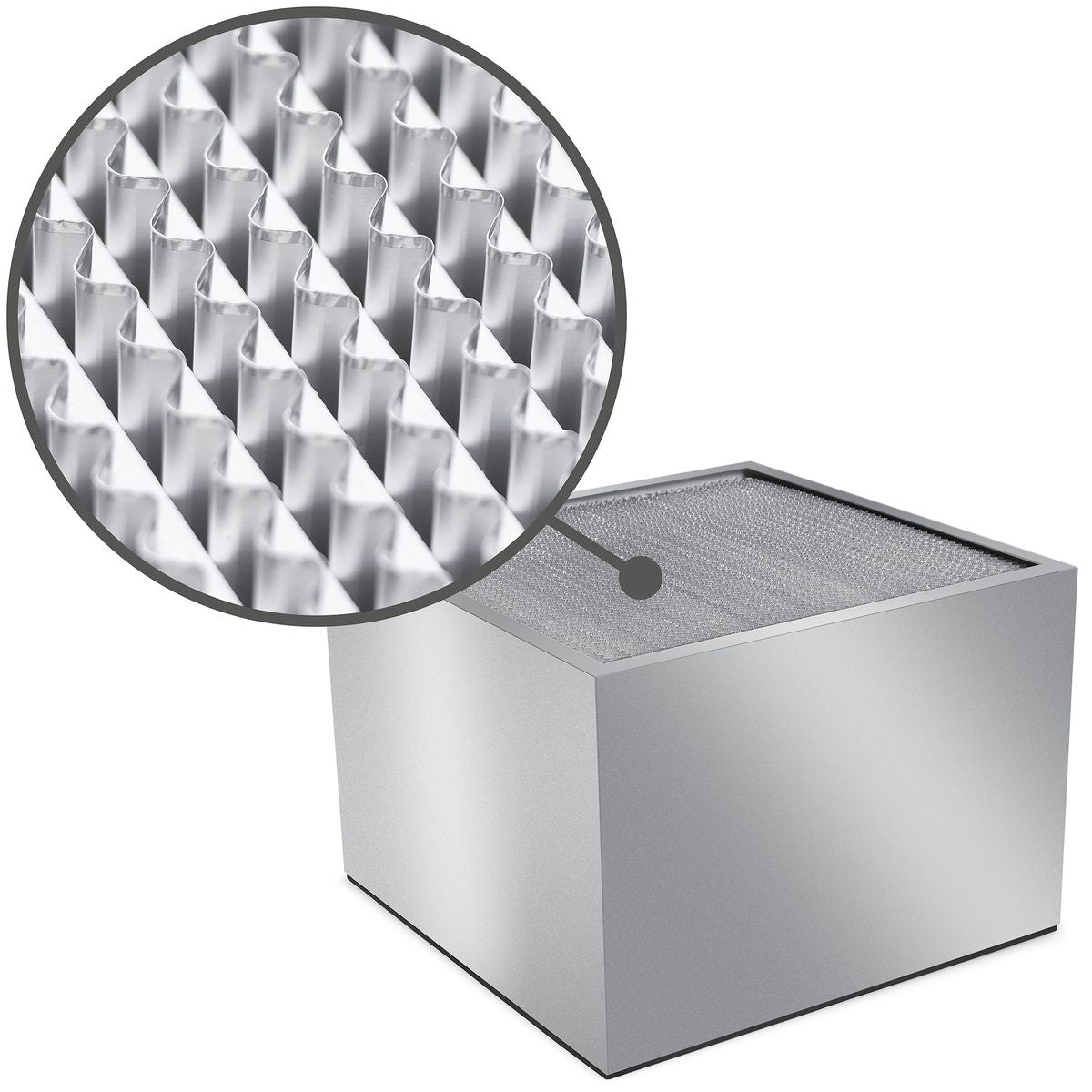

- Fully encapsulated metal lamella: a robust housing built for demanding professional use.
Technical data
- Article number: 7160000106
- TROTEC designation: HighFlow HEPA H14 main filter, heat-resistant
- Filter class: HEPA H14 per EN 1822 (ISO 45H / ISO 29463)
- Separation efficiency: 99.995% for particles 0.1 to 0.2 µm

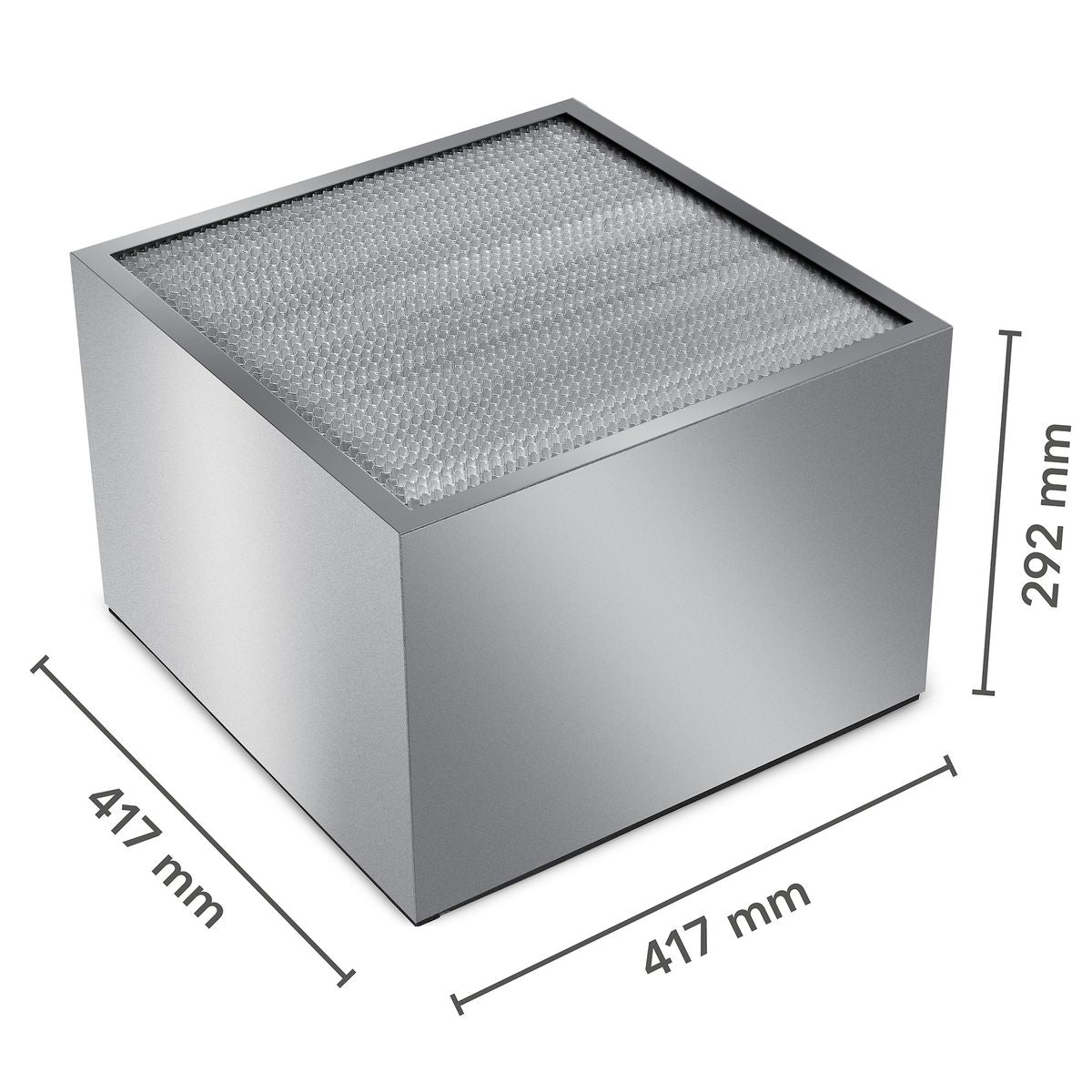

- Main filter dimensions: 417 × 417 × 292 mm
- Weight: approx. 9.7 kg
- Heat resistant: designed for thermal decontamination cycles at 100 °C
- Individual test certificate included with each filter
- Made in Germany
Genuine original TROTEC part — supplied by BMB Rheinland, your authorised TROTEC distributor.
Need bulk quantities or a service set? Request a quote.
Downloads
- CE marked — compliant with the applicable EU directives for each product (e.g. Machinery 2006/42/EC, EMC 2014/30/EU, RoHS 2011/65/EU).
- ISO 9001:2015 quality-managed manufacturing.
- Made in Germany — engineered and built by the respective German manufacturer (TROTEC / Dantherm Group brands).
- Product-specific certifications — e.g. HEPA H14 per EN 1822, VDI 6022 hygiene and filter/dust-class ratings apply to the relevant product categories and are stated in each product's specification and documentation.
Full manufacturer documentation is supplied with every product — see the Downloads section on each product page.
EU-wide B2B delivery. Delivery terms and lead times are confirmed in writing on order acceptance; DAP delivery available on request.
Lead times — stocked items typically 3–5 working days within Germany; project, bulk and pallet orders approx. 2–4 weeks, confirmed on order acceptance.
Warranty — 12-month manufacturer warranty, handled by BMB Rheinland GmbH as authorised TROTEC / Dantherm Group distribution partner. Claims to be reported in writing within 14 days of identifying the defect.
Returns — B2B returns accepted only for defective or incorrectly delivered goods, per our Refund Policy and General Terms and Conditions.
Bulk & tender orders — framework agreements, staggered call-off and full procurement documentation available. Contact us for a quotation.
- HEPA H14 · EN 1822 certified
