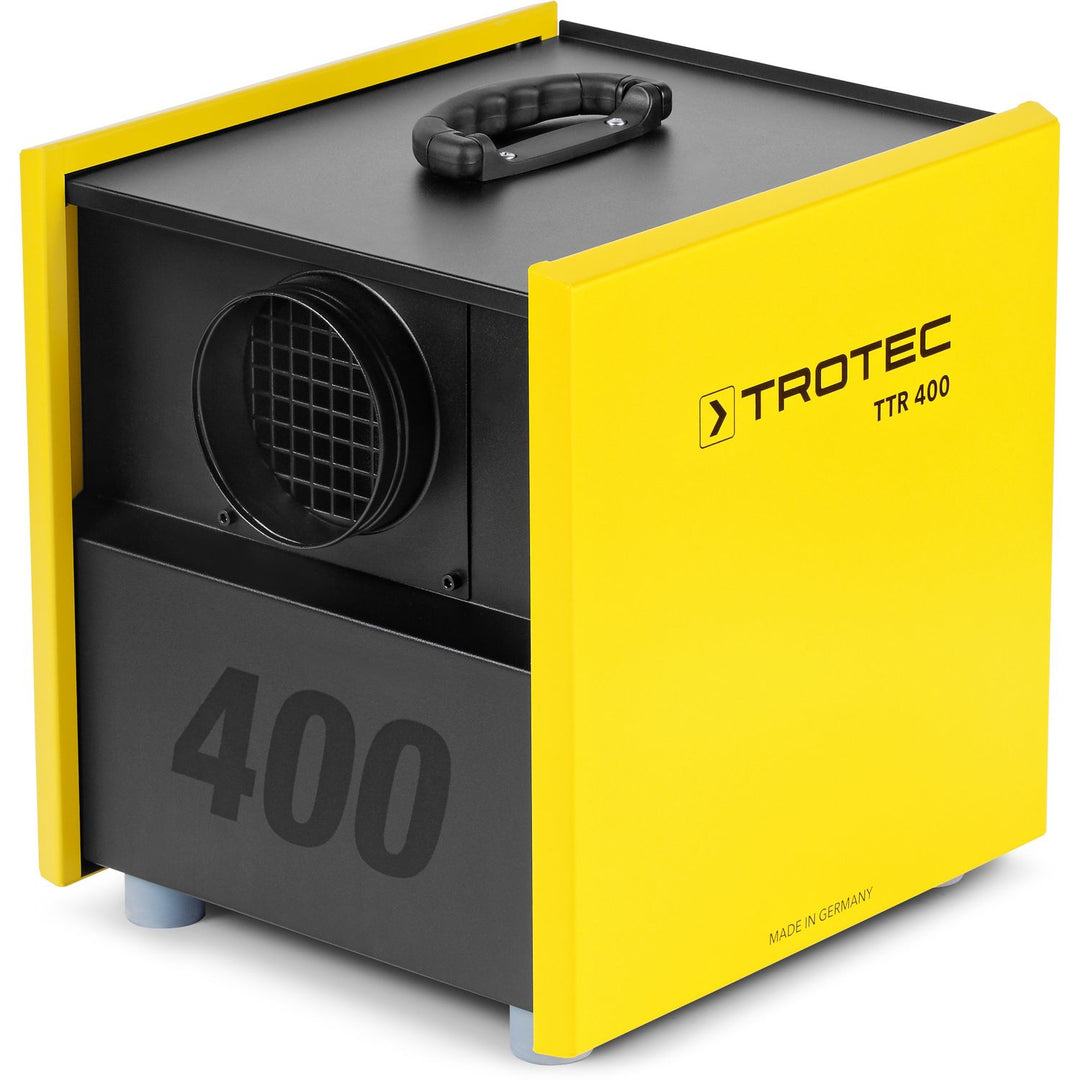

TROTEC TTR 400 – Desiccant Dehumidifier / Industrial Adsorption Dryer (1.2 kg/h)
Available to order: typical lead time 5–10 working days. We confirm the exact date after your order or enquiry.
The TROTEC TTR 400 is a robust, portable desiccant (adsorption) dehumidifier for heavy industrial drying. It removes up to 1.2 kg/h of moisture (≈ 28.8 kg per 24 h) and delivers a high, adjustable dry-air flow, drying dependably even at low temperatures and low dew points.
How it works
The TTR 400 relies on adsorption, not refrigeration. Process air is guided through a slowly turning rotor coated with hygroscopic silica gel, which binds water vapour straight out of the airstream and supplies dry air to the process. A heated regeneration sector continuously expels the captured moisture from the rotor as warm, humid exhaust, keeping the desiccant permanently reactivated. Since the method works independently of the dew point, it sustains deep drying in cold and unheated spaces where condensation units lose effectiveness.
Key benefits
- High, adjustable airflow — dry-air flow spans 130–450 m³/h to match large or ducted drying tasks.
- Strong capacity — up to 1.2 kg/h for demanding continuous drying.
- Low-temperature performance — effective from −15 °C, ideal for cold and unheated sites.
- Portable build — 17 kg in a 400 × 350 × 405 mm housing for straightforward transport and setup.
- Continuous duty — separate regeneration circuit keeps the rotor active around the clock.
Typical applications
- Industrial process and production drying
- Cold stores, archives and unheated warehouses
- Water-damage restoration and construction drying
- Corrosion and mould prevention for stored goods and equipment
Technical data

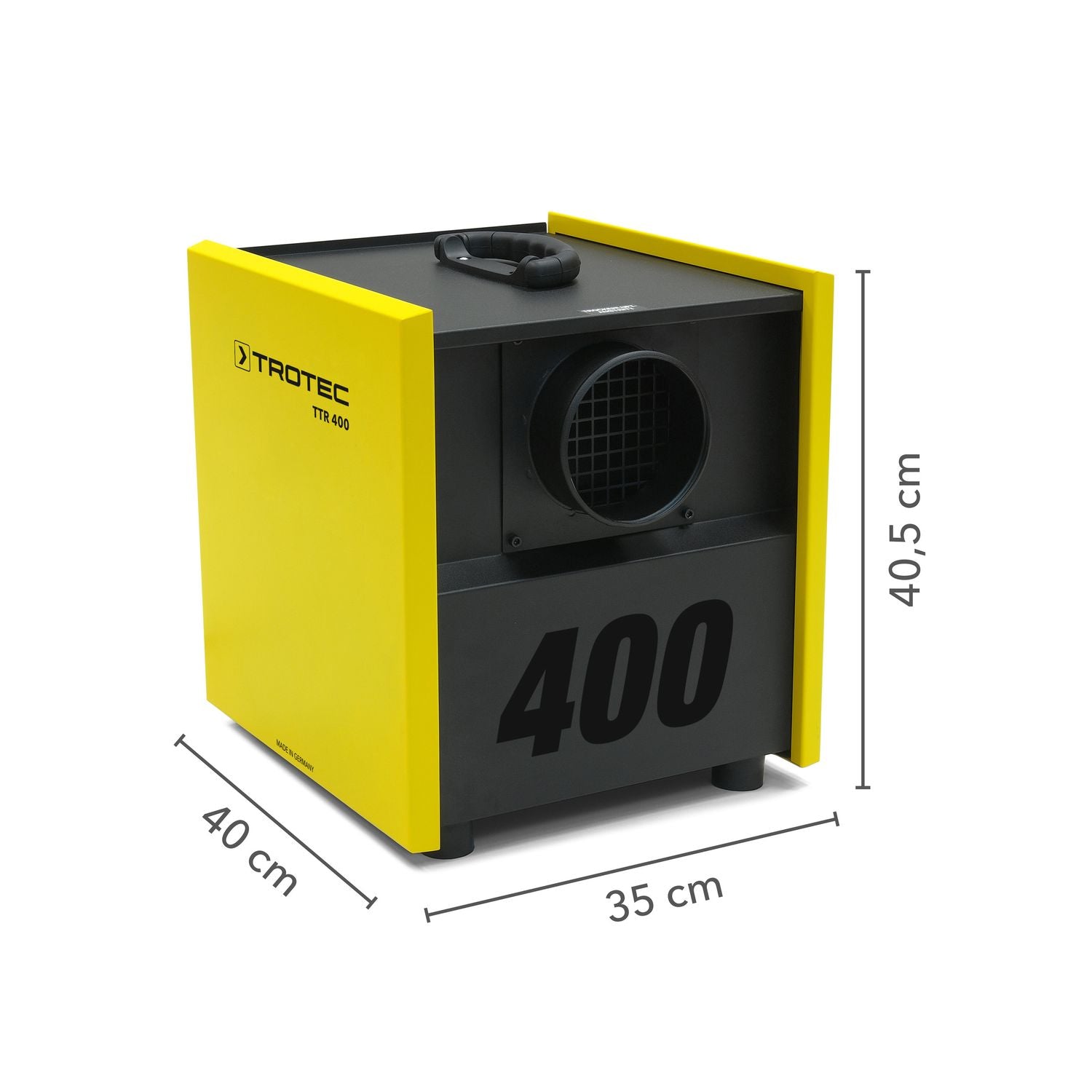

- Dimensions (L × W × H): 400 × 350 × 405 mm
- Weight: 17 kg
- Dehumidification capacity: 1.2 kg/h (≈ 28.8 kg/24 h)
- Dry-air flow: 130–450 m³/h (350 nominal)
- Power: 1.5 kW · 230 V, 50/60 Hz · 6 A
- Sound level: 63 dB(A)
- Working range: −15 °C to 35 °C
- Article no.: 1.110.000.020
Genuine TROTEC equipment — CE marked and Made in Germany, supplied with full manufacturer documentation by BMB Rheinland, your authorised TROTEC distributor.
Planning a project or a larger requirement? Request a quote.
Downloads
- CE marked — compliant with the applicable EU directives for each product (e.g. Machinery 2006/42/EC, EMC 2014/30/EU, RoHS 2011/65/EU).
- ISO 9001:2015 quality-managed manufacturing.
- Made in Germany — engineered and built by the respective German manufacturer (TROTEC / Dantherm Group brands).
- Product-specific certifications — e.g. HEPA H14 per EN 1822, VDI 6022 hygiene and filter/dust-class ratings apply to the relevant product categories and are stated in each product's specification and documentation.
Full manufacturer documentation is supplied with every product — see the Downloads section on each product page.
EU-wide B2B delivery. Delivery terms and lead times are confirmed in writing on order acceptance; DAP delivery available on request.
Lead times — stocked items typically 3–5 working days within Germany; project, bulk and pallet orders approx. 2–4 weeks, confirmed on order acceptance.
Warranty — 12-month manufacturer warranty, handled by BMB Rheinland GmbH as authorised TROTEC / Dantherm Group distribution partner. Claims to be reported in writing within 14 days of identifying the defect.
Returns — B2B returns accepted only for defective or incorrectly delivered goods, per our Refund Policy and General Terms and Conditions.
Bulk & tender orders — framework agreements, staggered call-off and full procurement documentation available. Contact us for a quotation.
- Original TROTEC · CE marked
