TROTEC TAC M TOWER — Professional HEPA H14 Stationary Air Cleaning Unit
Available to order: typical lead time 5–10 working days. We confirm the exact date after your order or enquiry.
The TROTEC TAC M TOWER is the stationary tower variant of the TAC M series. It delivers the same FlowMatic-regulated 1,200 m³/h of HEPA H14 clean air as the mobile TAC M, but in a slim, space-saving tower footprint made for permanent installation. Certified to EN 1822 with 99.995% separation at the most-penetrating particle size, it suits offices, classrooms and treatment rooms where the unit stays in place.
How it works

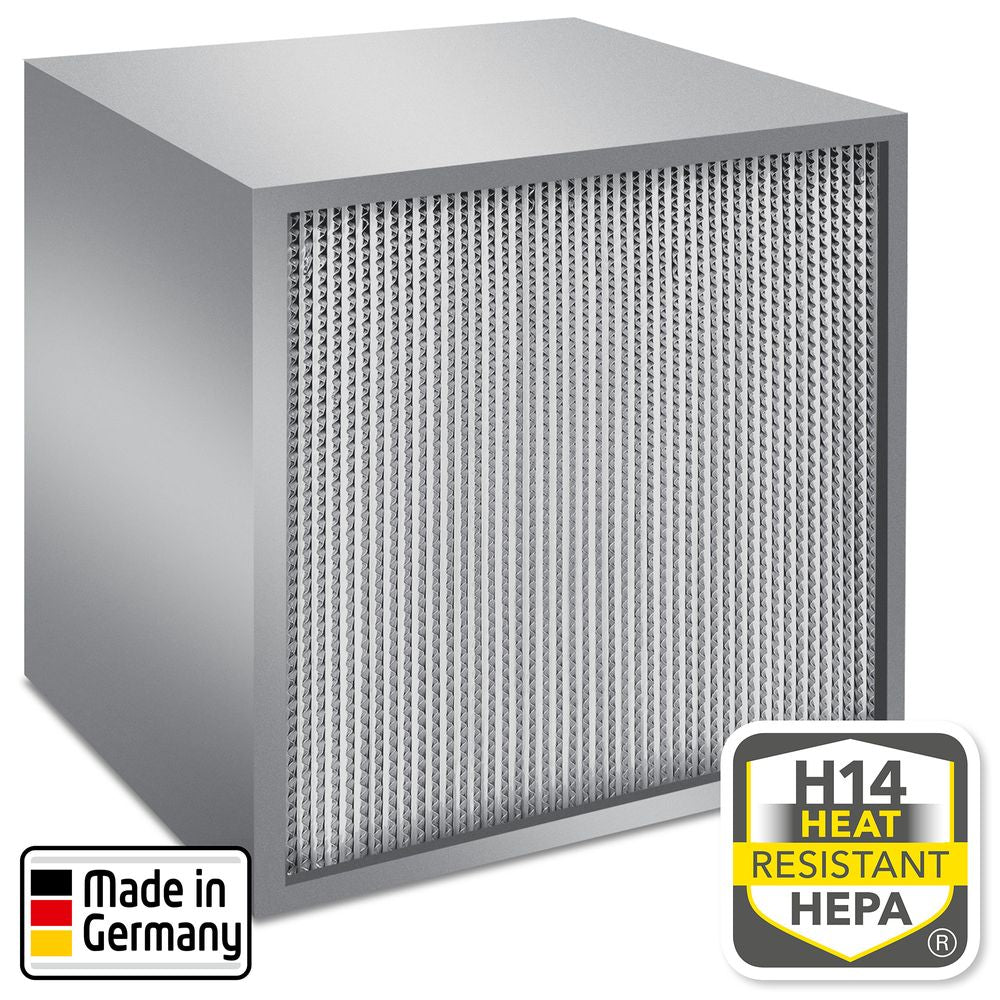

The TAC M TOWER cleans by mechanical HEPA H14 filtration alone. Room air passes an F7 pre-filter and is then driven through the heat-resistant certified HEPA H14 element, which separates 99.995% of airborne particles at MPPS — fine dust, aerosols, bacteria and virus-laden droplets. FlowMatic constant-volume regulation keeps the delivered clean-air rate steady as the filter loads over its service life.
Key benefits
- Slim tower footprint — 506 × 523 mm base fits neatly against a wall for fixed installation.
- High clean-air output — 1,200 m³/h at H14 for larger occupied rooms.
- FlowMatic constant volume — steady delivered airflow throughout the filter life.
- Programmable touchscreen — scheduling and settings secured with a PIN lock.
- True HEPA H14 separation — 99.995% efficiency at MPPS per EN 1822 with a heat-resistant element.
Typical applications
- Offices, open-plan and meeting rooms
- Schools, classrooms and lecture halls
- Medical practices and treatment rooms
- Waiting areas and reception spaces
- Any room needing permanent, unobtrusive air cleaning
Technical data
- Article number: 1.580.010.145 / .146 / .147 / .148 (colour variants)
- Filter class: HEPA H14 per EN 1822, heat-resistant element · 99.995% separation at MPPS
- H14 airflow (nominal): 1,200 m³/h
- H13 airflow: up to 1,400 m³/h
- Maximum airflow: 2,100 m³/h
- Sound level: 29–50 dB(A) at 1 m
- Dimensions (L × W × H): 506 × 523 × 1,100 mm (slim stationary tower)
- Weight: 76.7 kg including filter
- Power: 0.14 kW @ 900 m³/h · 0.75 kW maximum
- Mains: 220–240 V, 50/60 Hz · 3.5 A · IP23
- Pre-filter: F7 (EN 779:2002)
- Control: Programmable touchscreen with PIN lock
- FlowMatic: Yes
- Thermal decontamination: No (TAC V+ exclusive feature)
- Compliance: CE marked · ISO 9001 TÜV · EN 1822 · Made in Germany
Genuine TROTEC equipment — CE marked and Made in Germany, supplied with full manufacturer documentation by BMB Rheinland, your authorised TROTEC distributor.
Planning a project or a larger requirement? Request a quote.
Downloads
- CE marked — compliant with the applicable EU directives for each product (e.g. Machinery 2006/42/EC, EMC 2014/30/EU, RoHS 2011/65/EU).
- ISO 9001:2015 quality-managed manufacturing.
- Made in Germany — engineered and built by the respective German manufacturer (TROTEC / Dantherm Group brands).
- Product-specific certifications — e.g. HEPA H14 per EN 1822, VDI 6022 hygiene and filter/dust-class ratings apply to the relevant product categories and are stated in each product's specification and documentation.
Full manufacturer documentation is supplied with every product — see the Downloads section on each product page.
EU-wide B2B delivery. Delivery terms and lead times are confirmed in writing on order acceptance; DAP delivery available on request.
Lead times — stocked items typically 3–5 working days within Germany; project, bulk and pallet orders approx. 2–4 weeks, confirmed on order acceptance.
Warranty — 12-month manufacturer warranty, handled by BMB Rheinland GmbH as authorised TROTEC / Dantherm Group distribution partner. Claims to be reported in writing within 14 days of identifying the defect.
Returns — B2B returns accepted only for defective or incorrectly delivered goods, per our Refund Policy and General Terms and Conditions.
Bulk & tender orders — framework agreements, staggered call-off and full procurement documentation available. Contact us for a quotation.
- HEPA H14 · EN 1822 certified
