TROTEC VE 4 S – Side Channel Blower (MultiQube System)
- Original TROTEC · CE marked
Available to order: typical lead time 5–10 working days. We confirm the exact date after your order or enquiry.
The TROTEC VE 4 S is the no-frills workhorse among the MultiQube side channel blowers: 150 m³/h air flow from a 1.1 kW motor, usable in both suction and pressure operation, at the sharpest price point in its class. It dries insulation layers of up to 40 m² in negative-pressure mode and up to 50 m² in positive-pressure mode, and its impact-resistant ABS housing stacks flush with every other MultiQube module on site and in the van.
How it works

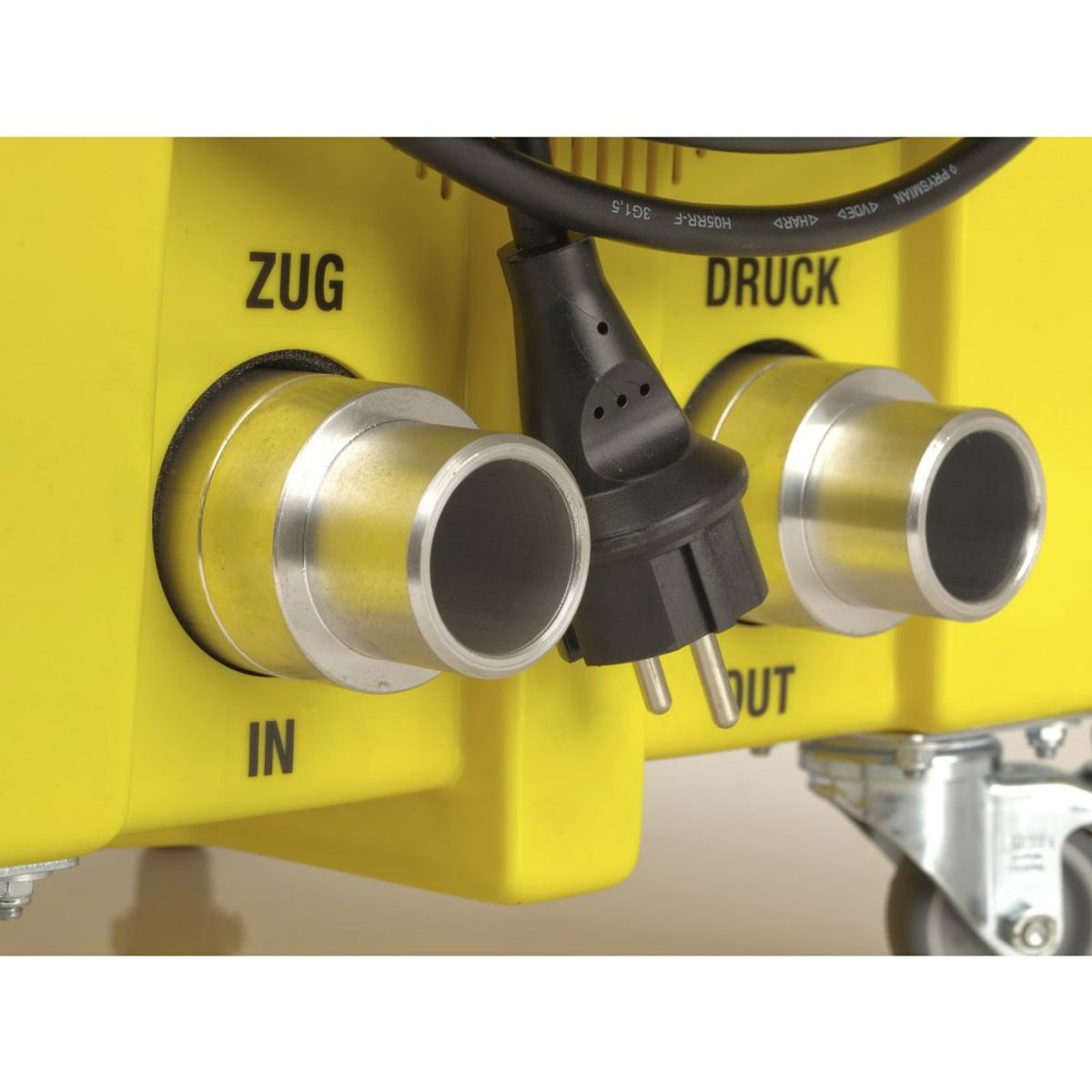

Access openings are drilled through the screed into the insulation layer. In suction mode the VE 4 S pulls the moist air out of the insulation through these openings — always combined with an upstream MultiQube water separator and filter chain that captures water and particles before the air stream reaches the blower. In pressure mode the flow is reversed and the blower pushes air into the insulation layer, forcing the moisture out through relief openings. A 3 mm protective grille on the intake and outlet channels keeps coarse particles out of the compressor stage.
Key benefits

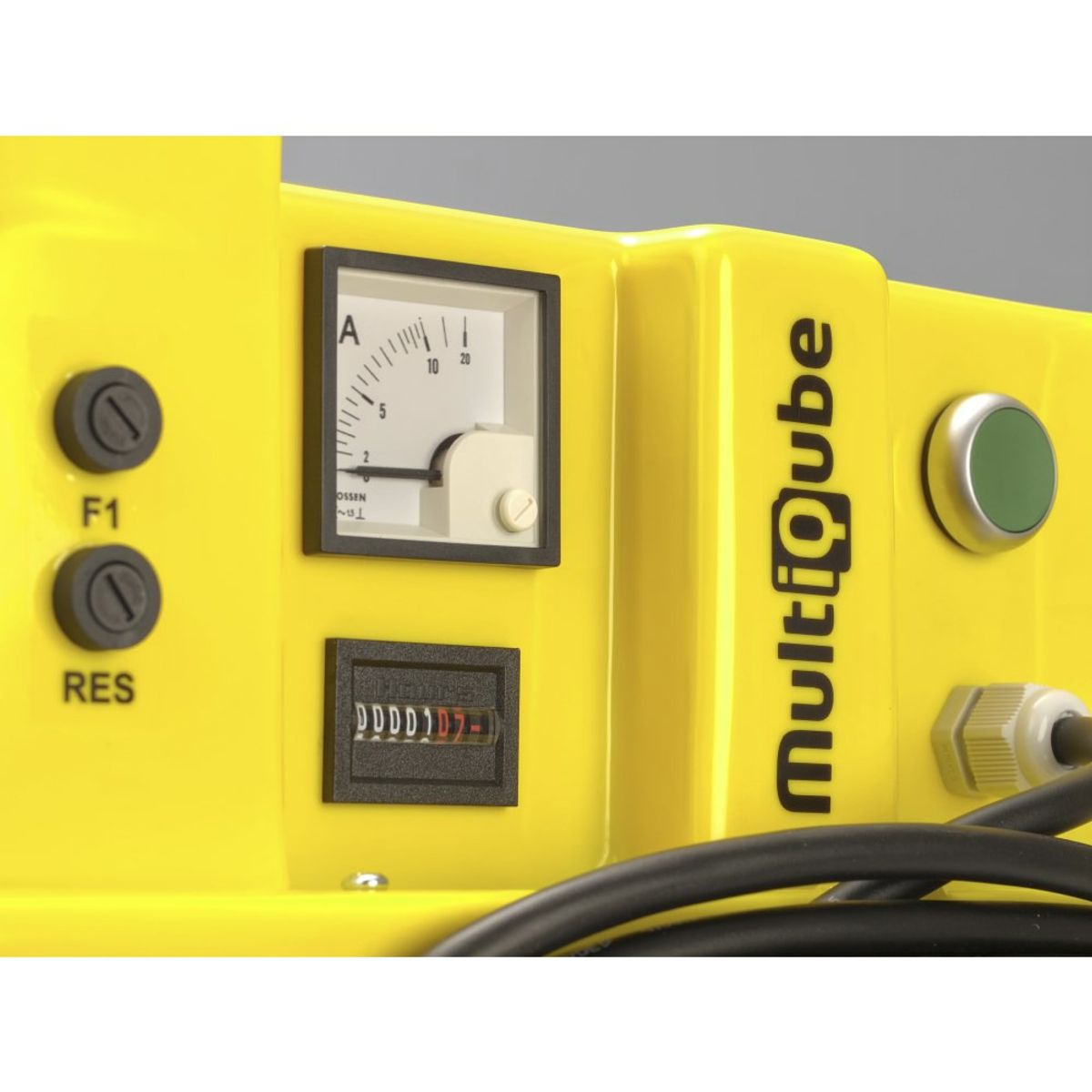

- Best price-performance in its class — ammeter, operating hours counter, cable rewind and service socket are all standard equipment.
- Suction and pressure operation — one unit covers both insulation drying methods, up to 40 m² (suction) or 50 m² (pressure).
- Service socket for a dehumidifier — connect the condenser dryer directly at the blower and keep the installation compact.
- Built for site handling — stackable ABS housing, quality castors with roll-stop detent and floor-friendly solid rubber tyres, recessed controls, quick-release maintenance fasteners.

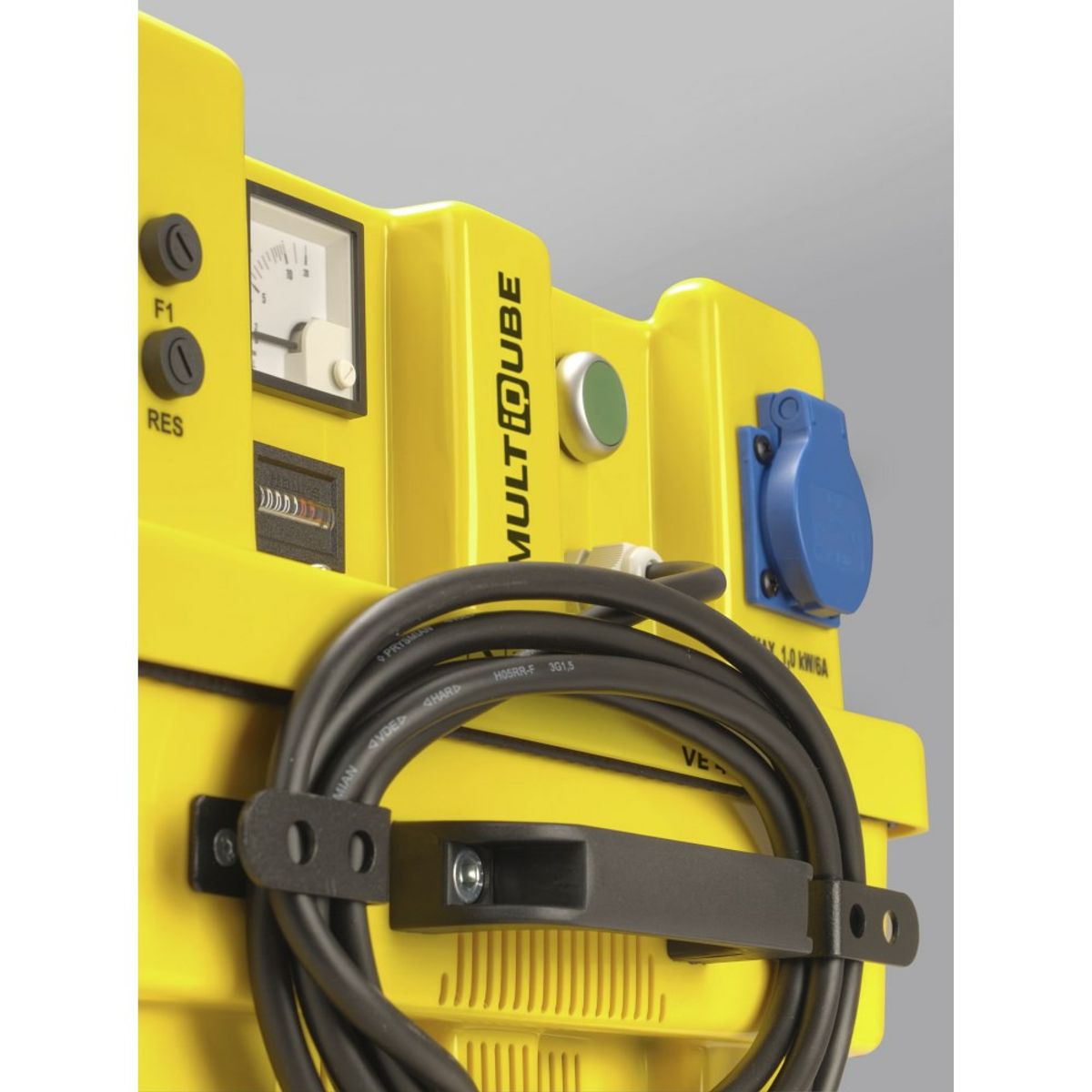

- Durable by design — high-temperature bearings, reserve fuse and integrated cable holders for long, unattended drying assignments.
Typical applications
- Insulation layer drying after water damage in residential and commercial buildings
- Screed insulation drying in suction or pressure setups with MultiQube modules
- Fleet equipment for restoration contractors and drying services
Technical data
- Article number: 1.560.000.024
- EAN: 4052138002995
- Air flow (max., free-blowing): 150 m³/h
- Max. vacuum: 175 mbar / max. pressure: 200 mbar
- Recommended area: 40 m² (suction) / 50 m² (pressure)
- Power consumption: 1.1 kW
- Power supply: 230 V / 50 Hz, nominal current 7.5 A, recommended fuse 16 A
- Cable length: 3 m, plug CEE 7/7

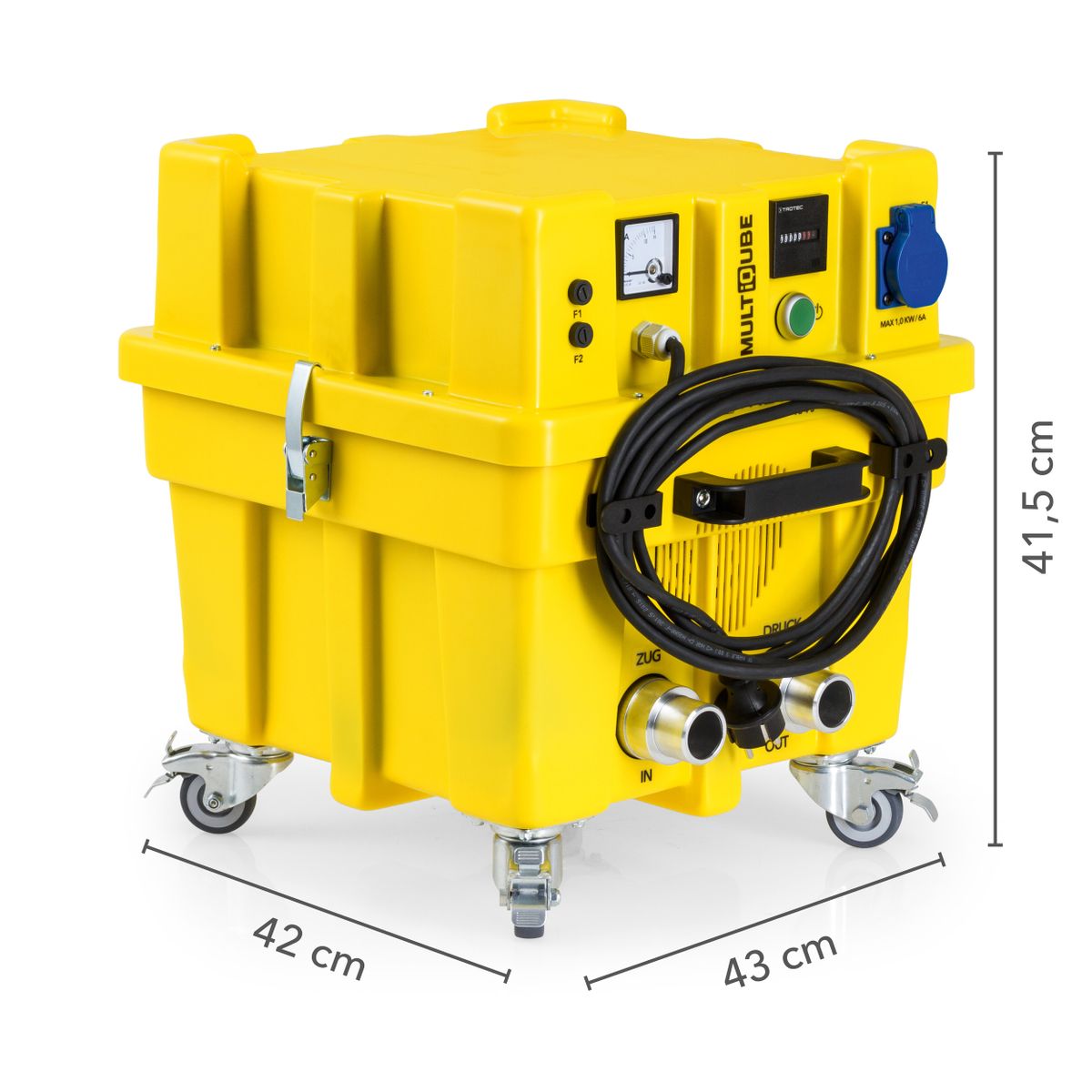

- Dimensions (L × W × H): 420 × 430 × 415 mm
- Weight: 25.5 kg, stackable ABS housing
Genuine TROTEC equipment — CE marked and Made in Germany, supplied with full manufacturer documentation by BMB Rheinland, your authorised TROTEC distributor.
Planning a project or a larger requirement? Request a quote.
