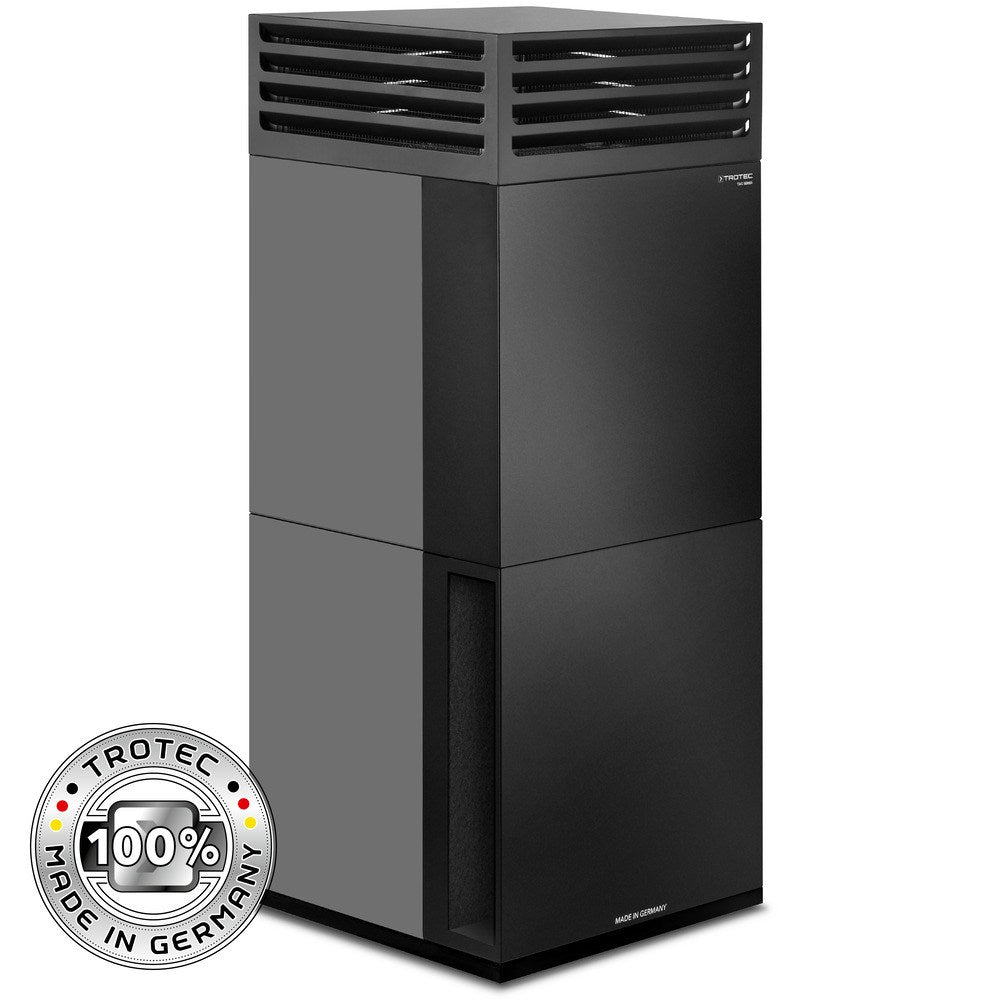

TROTEC TAC V+ TOWER — Flagship HEPA H14 Air Cleaning Unit with Thermal Decontamination
Available to order: typical lead time 5–10 working days. We confirm the exact date after your order or enquiry.
The TROTEC TAC V+ TOWER is the flagship of the TAC range — a stationary HEPA H14 air-cleaning tower that combines FlowMatic constant-volume regulation, a USB-updateable touchscreen with PIN lock and fully automatic thermal filter decontamination at 100 °C. It delivers up to 1,200 m³/h of H14 clean air, was validated by the Fraunhofer-Institut IBP and is recommended by Prof. Dr. Kähler of the University of the German Federal Armed Forces Munich.
How it works
Air cleaning is by mechanical HEPA H14 filtration. Room air passes an F7 pre-filter and is then driven through the HighFlow heat-resistant HEPA H14 element, which separates 99.995% of airborne particles at the most-penetrating particle size — fine dust, aerosols, bacteria and virus-laden droplets. What sets the V+ apart is a fully automatic regeneration cycle that heats the loaded filter to 100 °C to thermally decontaminate it; combined with FlowMatic constant-volume control, this keeps performance stable and extends filter life to 2–4 years.
Key benefits
- Thermal filter decontamination — automatic 100 °C regeneration cycle for safe handling and a filter life of 2–4 years.
- Independently validated — tested by Fraunhofer-Institut IBP and recommended by Prof. Dr. Kähler (University of the German Federal Armed Forces Munich).
- FlowMatic constant volume — delivered clean-air rate held steady across the filter life.
- USB-updateable touchscreen — programmable control with PIN lock and field-updatable firmware.
- True HEPA H14 HighFlow — 99.995% separation at MPPS per EN 1822 with a heat-resistant element.
Typical applications
- Schools, universities and lecture halls
- Offices, conference and board rooms
- Medical practices, clinics and treatment rooms
- Public authorities, courts and high-occupancy institutional spaces
- Any setting demanding maximum protection and low long-term filter cost
Technical data
- Article number: 1.580.010.150 / .151 / .152 / .153 (colour variants)
- Filter class: HEPA H14 HighFlow heat-resistant per EN 1822 · 99.995% separation at MPPS
- H14 airflow (nominal): 1,200 m³/h
- H13 airflow: up to 1,400 m³/h
- Maximum airflow: 2,100 m³/h
- Sound level: 29–50 dB(A) at 1 m
- Dimensions (L × W × H): 506 × 523 × 1,270 mm (770 mm width with optional sound caps)
- Weight: 86.5 kg including filter
- Power: 0.14 kW @ 900 m³/h · 0.79 kW continuous max · 1.25 kW short-term peak during filter regeneration
- Mains: 220–240 V, 50/60 Hz · 5.5 A · IP23 · H07RN-F cable
- Pre-filter: F7 (EN 779:2002)

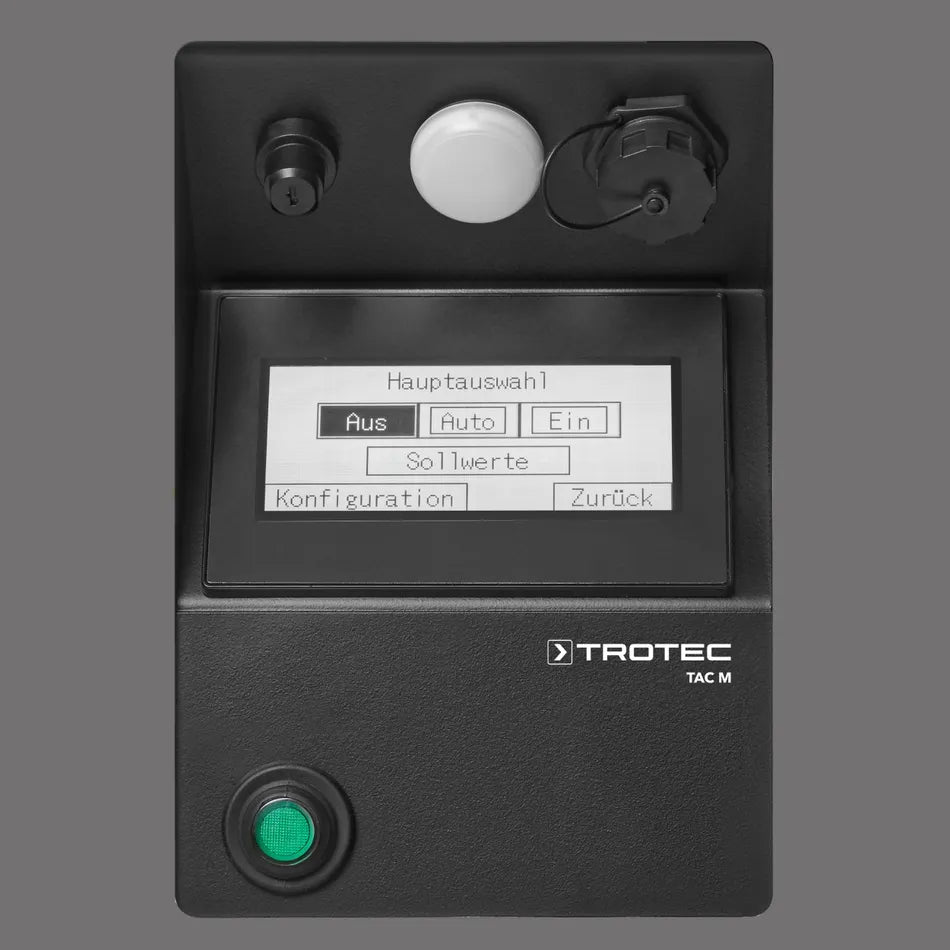

- Control: USB-updateable programmable touchscreen with PIN lock
- FlowMatic: Yes
- Thermal decontamination: Yes — automatic 100 °C filter-regeneration cycle (extends filter life to 2–4 years)
- Compliance: CE marked · ISO 9001 TÜV · EN 1822 · Made in Germany
Genuine TROTEC equipment — CE marked and Made in Germany, supplied with full manufacturer documentation by BMB Rheinland, your authorised TROTEC distributor.
Planning a project or a larger requirement? Request a quote.
Downloads
- CE marked — compliant with the applicable EU directives for each product (e.g. Machinery 2006/42/EC, EMC 2014/30/EU, RoHS 2011/65/EU).
- ISO 9001:2015 quality-managed manufacturing.
- Made in Germany — engineered and built by the respective German manufacturer (TROTEC / Dantherm Group brands).
- Product-specific certifications — e.g. HEPA H14 per EN 1822, VDI 6022 hygiene and filter/dust-class ratings apply to the relevant product categories and are stated in each product's specification and documentation.
Full manufacturer documentation is supplied with every product — see the Downloads section on each product page.
EU-wide B2B delivery. Delivery terms and lead times are confirmed in writing on order acceptance; DAP delivery available on request.
Lead times — stocked items typically 3–5 working days within Germany; project, bulk and pallet orders approx. 2–4 weeks, confirmed on order acceptance.
Warranty — 12-month manufacturer warranty, handled by BMB Rheinland GmbH as authorised TROTEC / Dantherm Group distribution partner. Claims to be reported in writing within 14 days of identifying the defect.
Returns — B2B returns accepted only for defective or incorrectly delivered goods, per our Refund Policy and General Terms and Conditions.
Bulk & tender orders — framework agreements, staggered call-off and full procurement documentation available. Contact us for a quotation.
- HEPA H14 · EN 1822 certified
