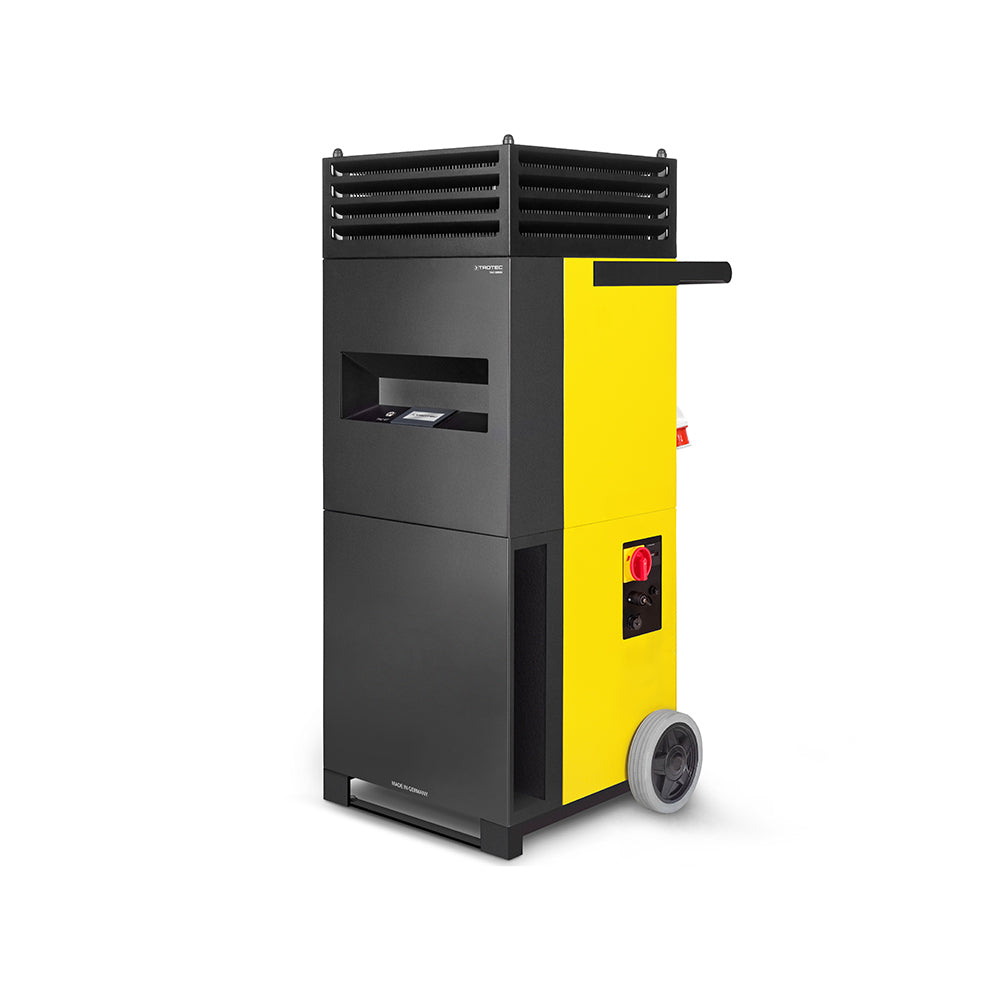

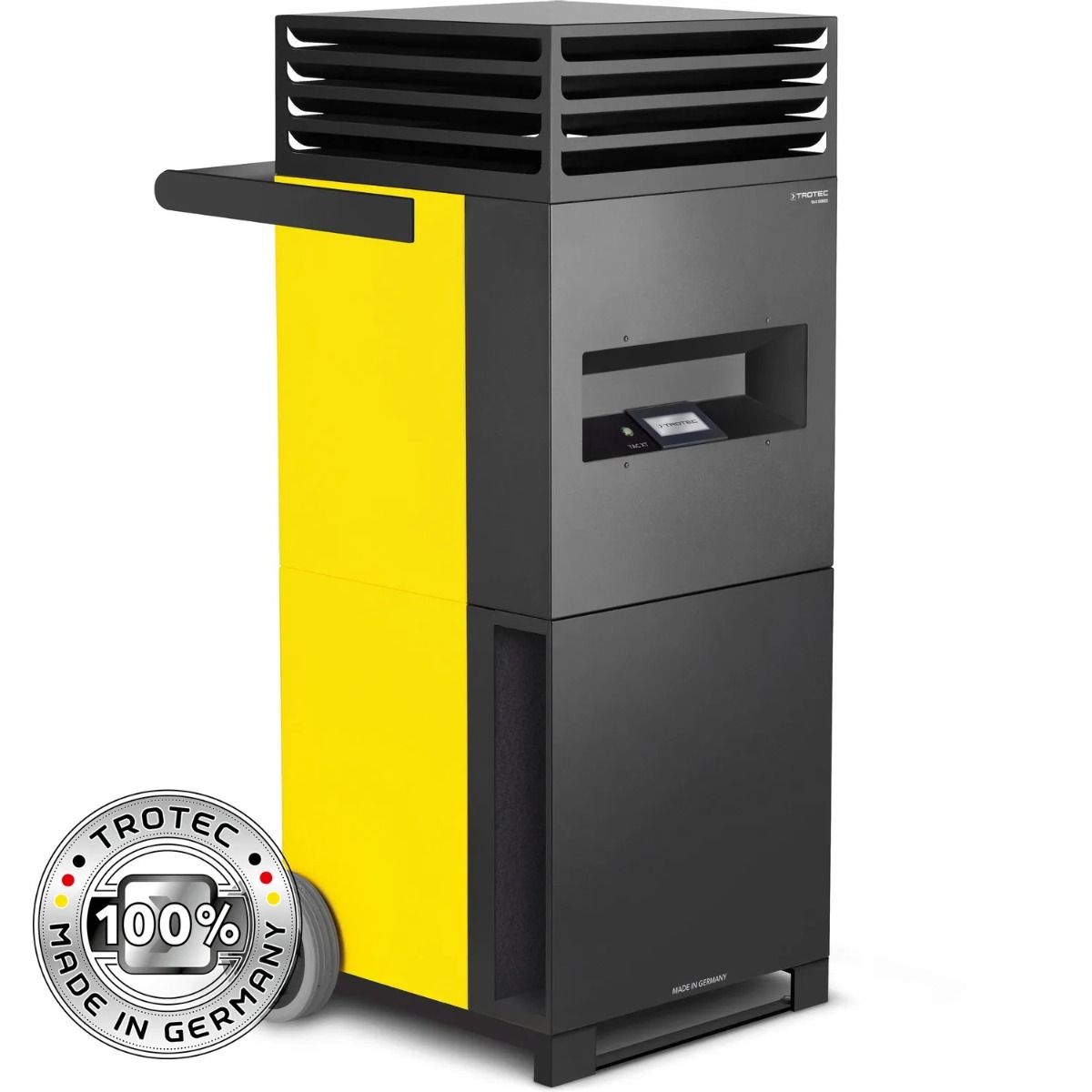

TROTEC TAC XT 18 – Multi Air Handler / Air Cleaner with Heating (2,500 m³/h, 18 kW)

The TROTEC TAC XT 18 is a versatile mobile multi air handler that combines H14 HEPA air cleaning, powerful air circulation and heating in a single unit. With 18 kW of heating output and an air flow of up to 2,500 m³/h (without HEPA filter), it covers construction drying, remediation, thermal decontamination and temporary heating — all managed from an integrated touch display.

How it works

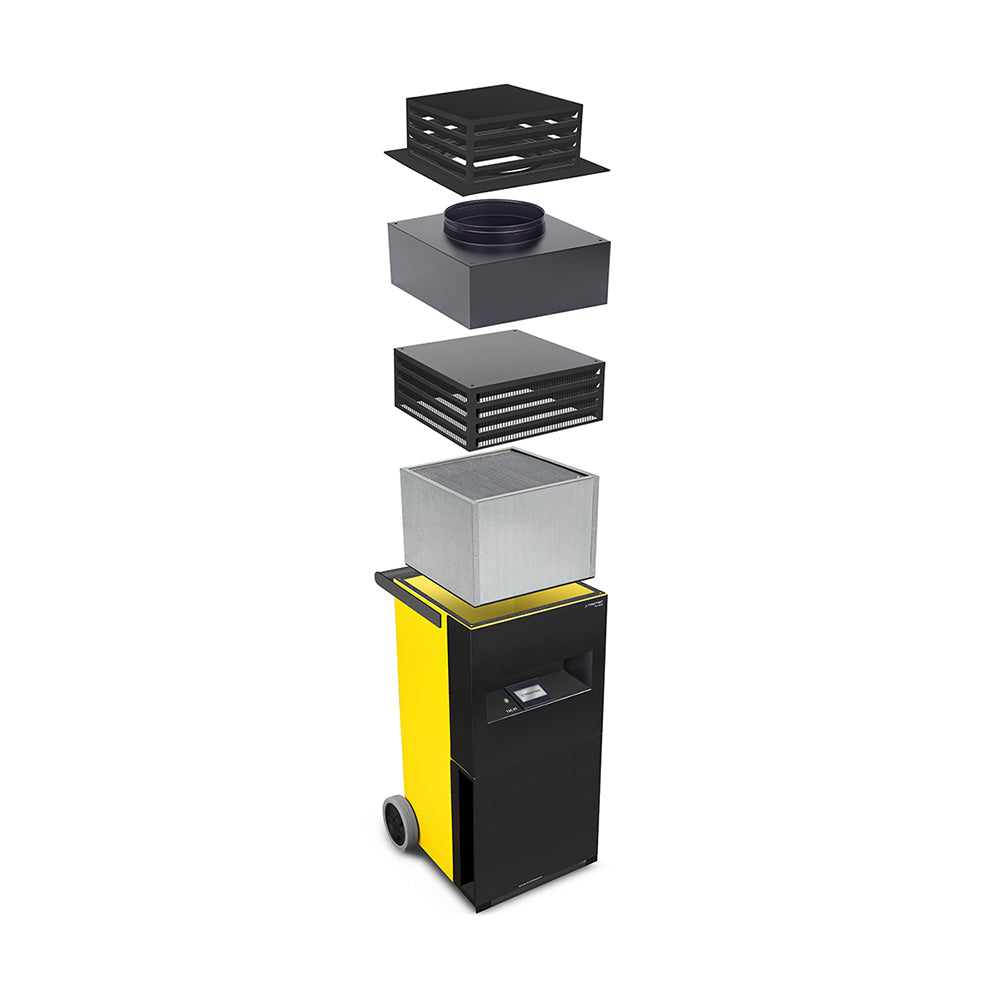

A high-pressure fan moves air through the unit, where a G4 pre-filter protects the airflow and an optional HEPA H14 main filter (DIN EN 1822) captures the finest airborne particles for clean-air remediation. An integrated 18 kW electric heater warms the air stream to a maximum discharge temperature of 95 °C, enabling drying and thermal decontamination cycles. Because filtration, circulation and heating are combined, one machine can be reconfigured to the task rather than deploying separate equipment; the touch display sets and monitors each mode. Note that fitting the H14 filter reduces air flow to 1,200 m³/h.

Key benefits

• Three functions in one — HEPA air cleaning, air circulation and heating in a single mobile unit reduce the kit you move to site.

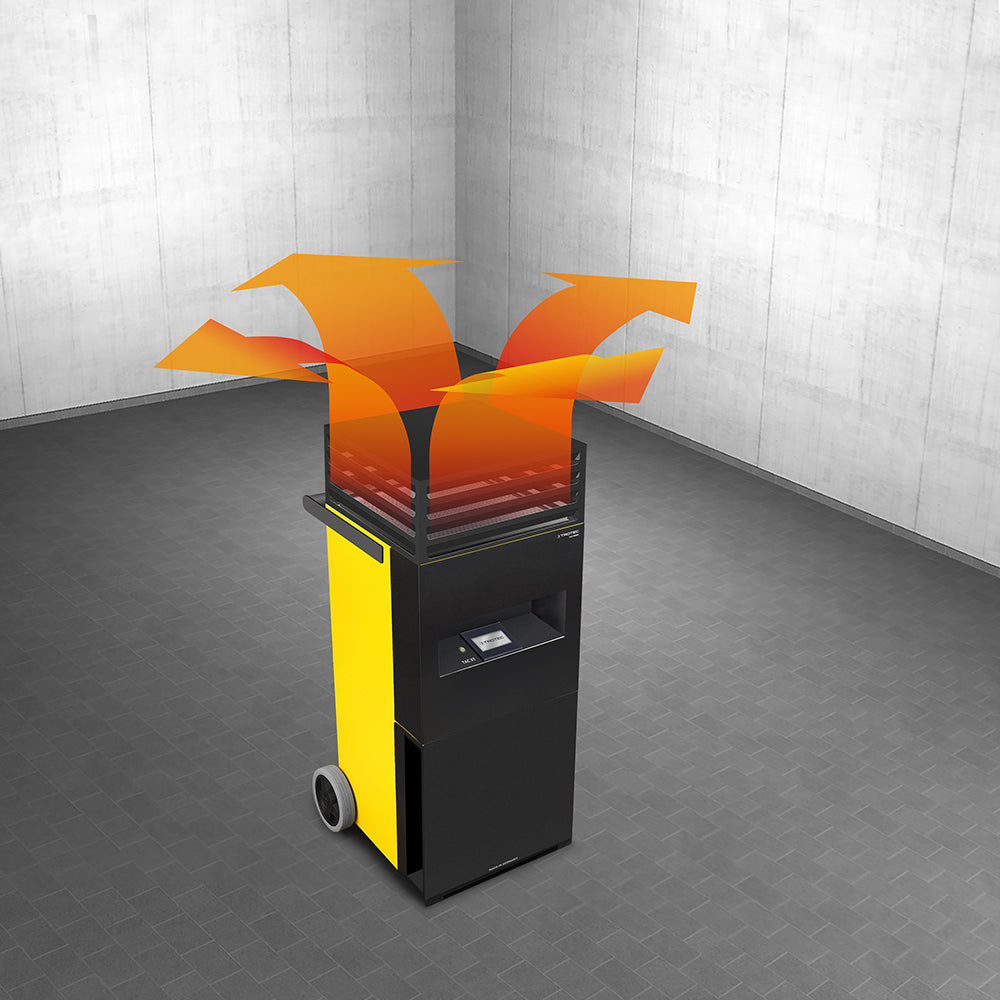

• 18 kW heating — discharge temperatures up to 95 °C drive fast construction drying and thermal decontamination.

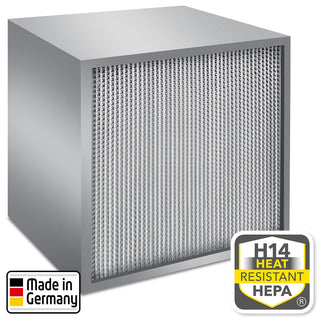

• H14 clean-air option — the optional HEPA H14 main filter meets DIN EN 1822 for remediation-grade filtration.
• Touch-display control — modes and setpoints are managed and monitored from one interface.

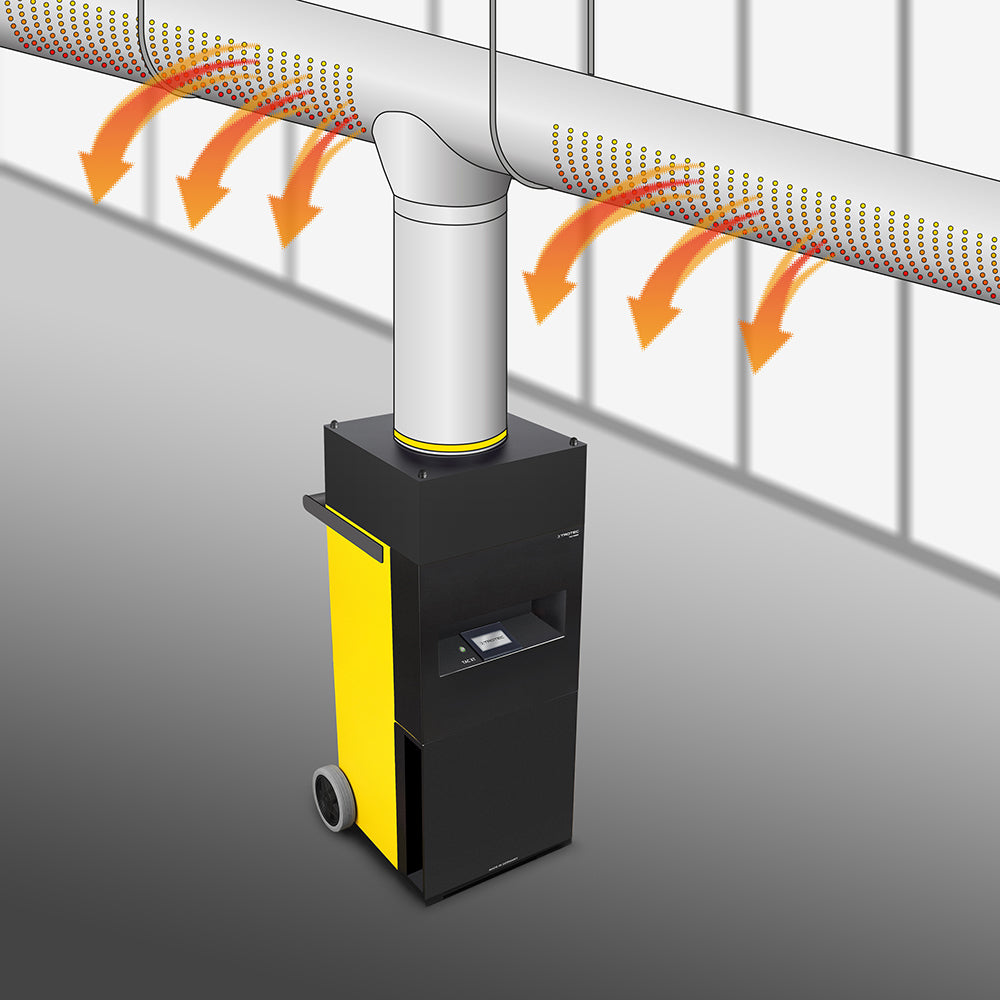

• Expandable — an extensive accessory range (FlowExtender, silencers, air-distribution tower and more) adapts the unit to each site.

Typical applications

• Construction and building drying
• Remediation with HEPA-filtered clean air
• Thermal decontamination and heat treatment

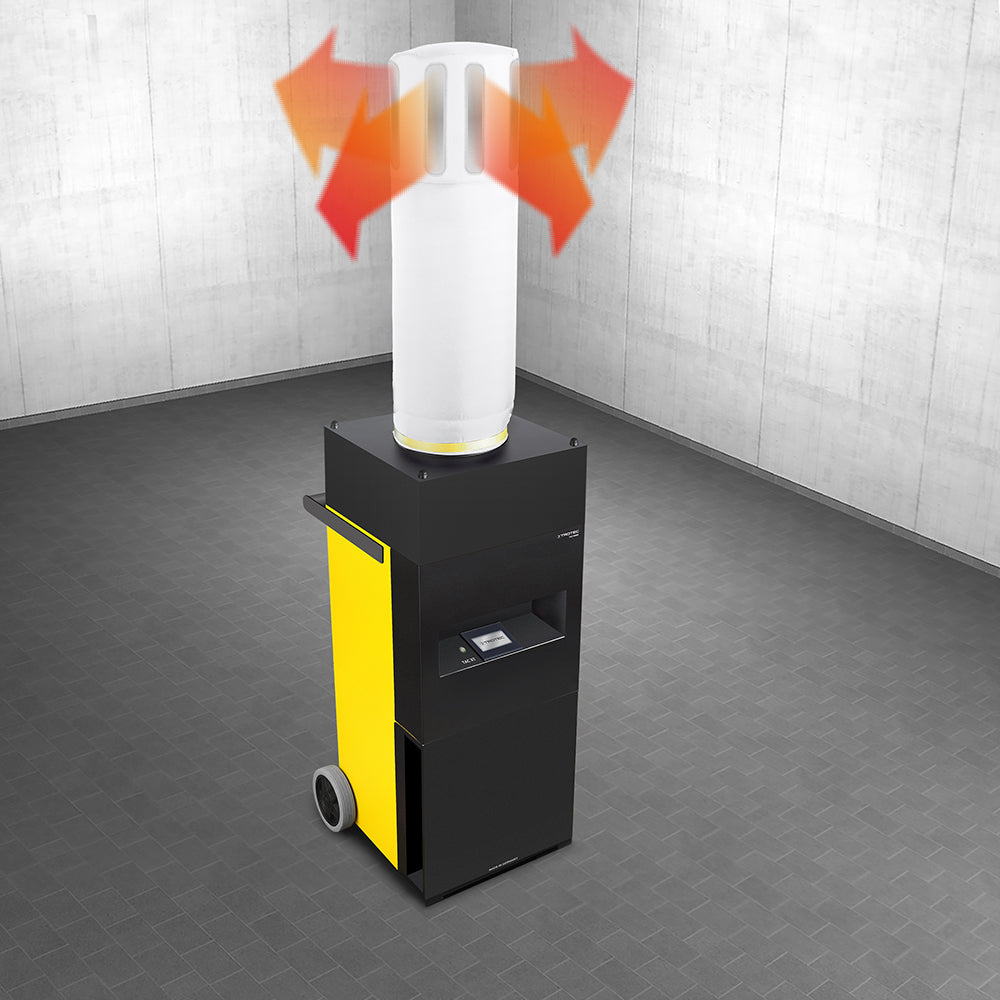

• Temporary heating of halls, sites and temporary structures

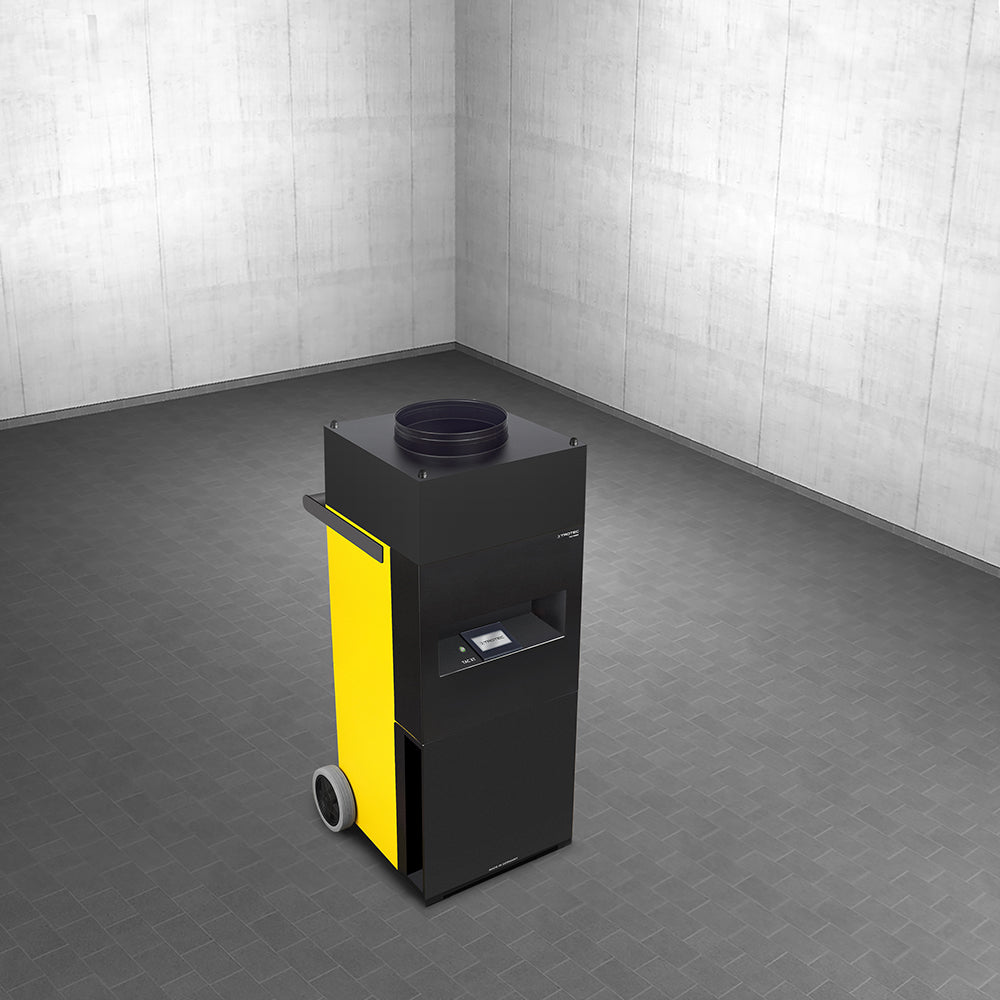

• Air circulation and ventilation support

Technical data

• Dimensions (L × W × H): 690 × 630 × 1,300 mm
• Max. air flow: 2,500 m³/h (without HEPA filter) · 1,200 m³/h with H14 filter
• Heating output: 18 kW

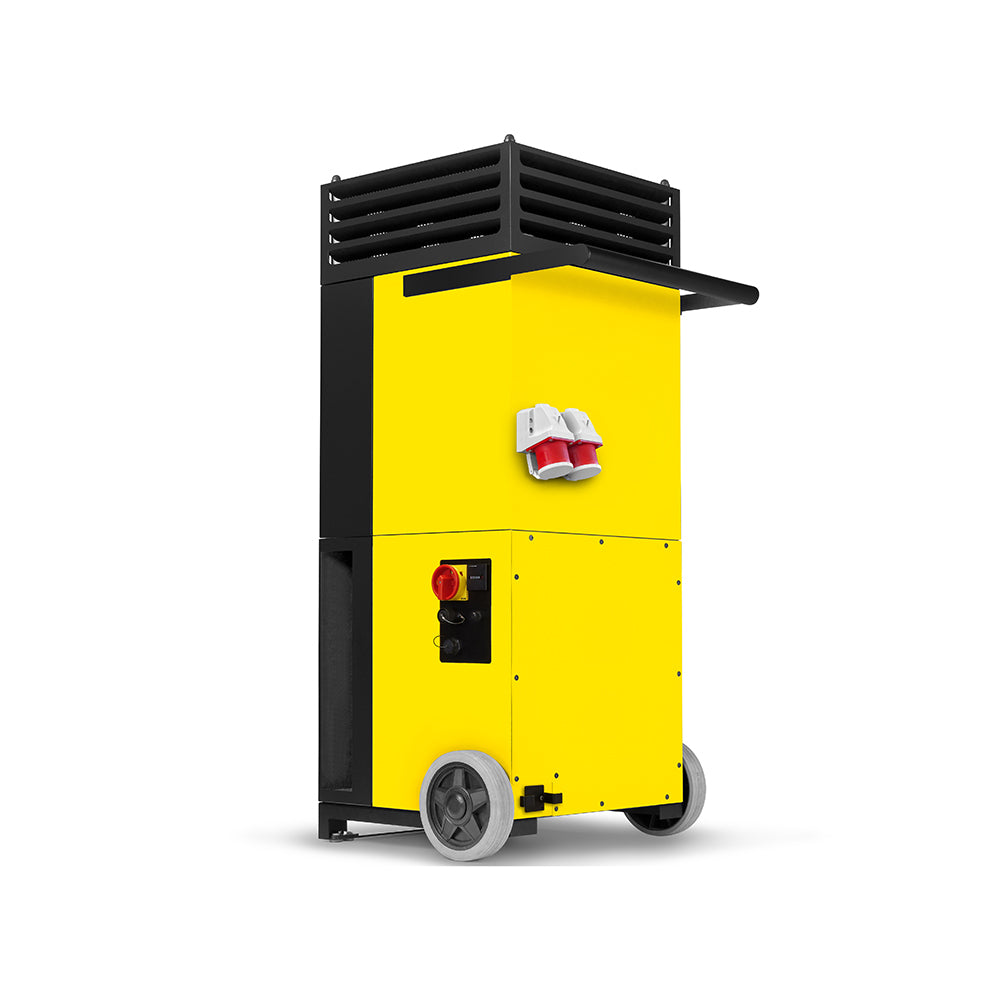

• Power supply: 2 × 400 V/3~, 50–60 Hz · 2 × CEE 16 A · 15.9 A
• Max. discharge temperature: 95 °C
• Sound level (ISO 11203): 35–59 dB(A)
• Optional main filter: HEPA H14 (DIN EN 1822)
• Article no.: 1.410.000.183

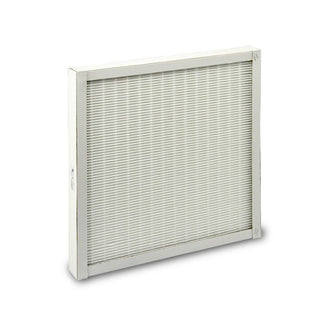

Extensive accessories available (FlowExtender, silencers, air distribution tower, etc.). Filters available separately.

Genuine TROTEC equipment — CE marked and Made in Germany, supplied with full manufacturer documentation by BMB Rheinland, your authorised TROTEC distributor.

Planning a project or a larger requirement? Request a quote.

Downloads

• 📄 User Manual — TAC XT 18 (EN)
