TROTEC VE 4 – Side Channel Blower with Optiflow (MultiQube System)
- Original TROTEC · CE marked
Available to order: typical lead time 5–10 working days. We confirm the exact date after your order or enquiry.

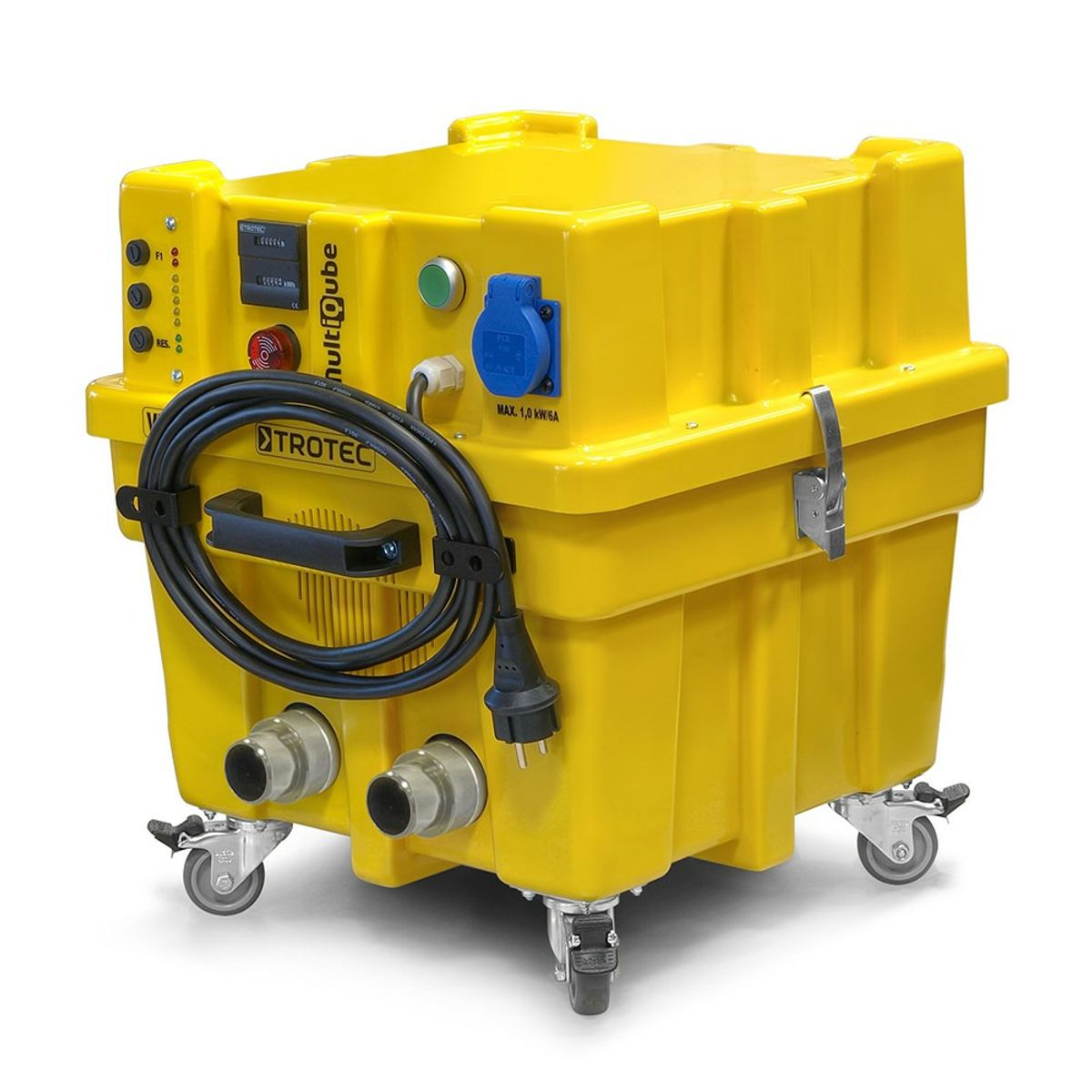

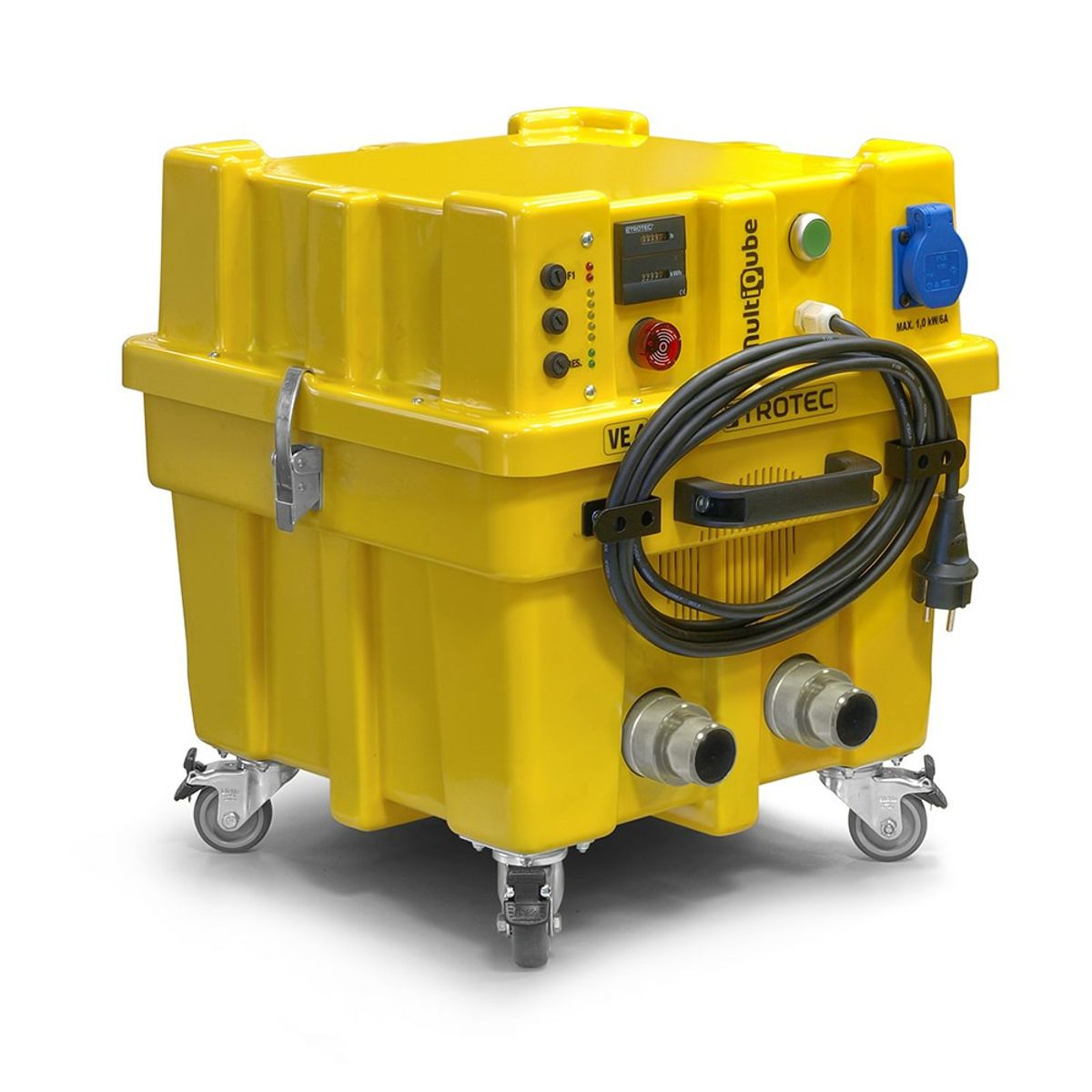

The TROTEC VE 4 is the fully equipped side channel blower of the MultiQube system: 150 m³/h air flow, 1.1 kW motor and a comprehensive standard specification including the proven Optiflow performance display, the HotStop protection system and a dual counter for operating hours and power consumption. Depending on the floor construction it dries insulation layers of up to 50 m² in pressure mode and up to 40 m² in suction mode.
How it works
Drilled openings through the screed give the air stream access to the insulation layer. In suction operation the VE 4 extracts the moist air from the insulation — combined with an upstream MultiQube water separator and filter chain that protects the compressor stage; in pressure operation it pushes air into the layer and drives the moisture out through relief openings. The Optiflow display makes the actual flow performance visible at a glance, while the HotStop system protects the unit in continuous operation. Two 38 mm connection nozzles are included as standard (50 mm nozzles available as an option).
Key benefits
- Optiflow performance display — the drying setup can be checked and optimised directly at the blower, without extra measuring runs.
- HotStop protection system — guards the unit during long, unattended drying assignments.
- Dual counter — logs operating hours and power consumption for transparent billing towards insurers and clients.
- 6.3 A service socket incl. fuse — connect a dehumidifier directly at the blower for a compact installation.
- Suction and pressure operation — up to 40 m² (suction) or 50 m² (pressure) per unit, depending on floor construction.
- MultiQube modularity — stackable ABS housing, touch controls, quick-release maintenance fasteners, reserve fuse and castors with parking brakes.
Typical applications
- Insulation layer drying after water damage with documented energy consumption
- Screed insulation drying in suction or pressure setups
- Restoration companies that need billing-ready consumption data per site
Technical data
- Article number: 1.560.000.025
- EAN: 4052138006696
- Air flow (free-blowing): 150 m³/h
- Max. pressure / vacuum: 200 mbar / 175 mbar
- Recommended area: 50 m² (pressure) / 40 m² (suction)
- Motor power: 1.1 kW
- Power supply: 230 V / 50 Hz, nominal current 7.5 A, recommended fuse 16 A
- Cable length: 3 m, plug CEE 7/7
- Motor protection: thermo contact / high-temperature bearings; coarse particle protection: 3 mm grille in intake and outlet channel

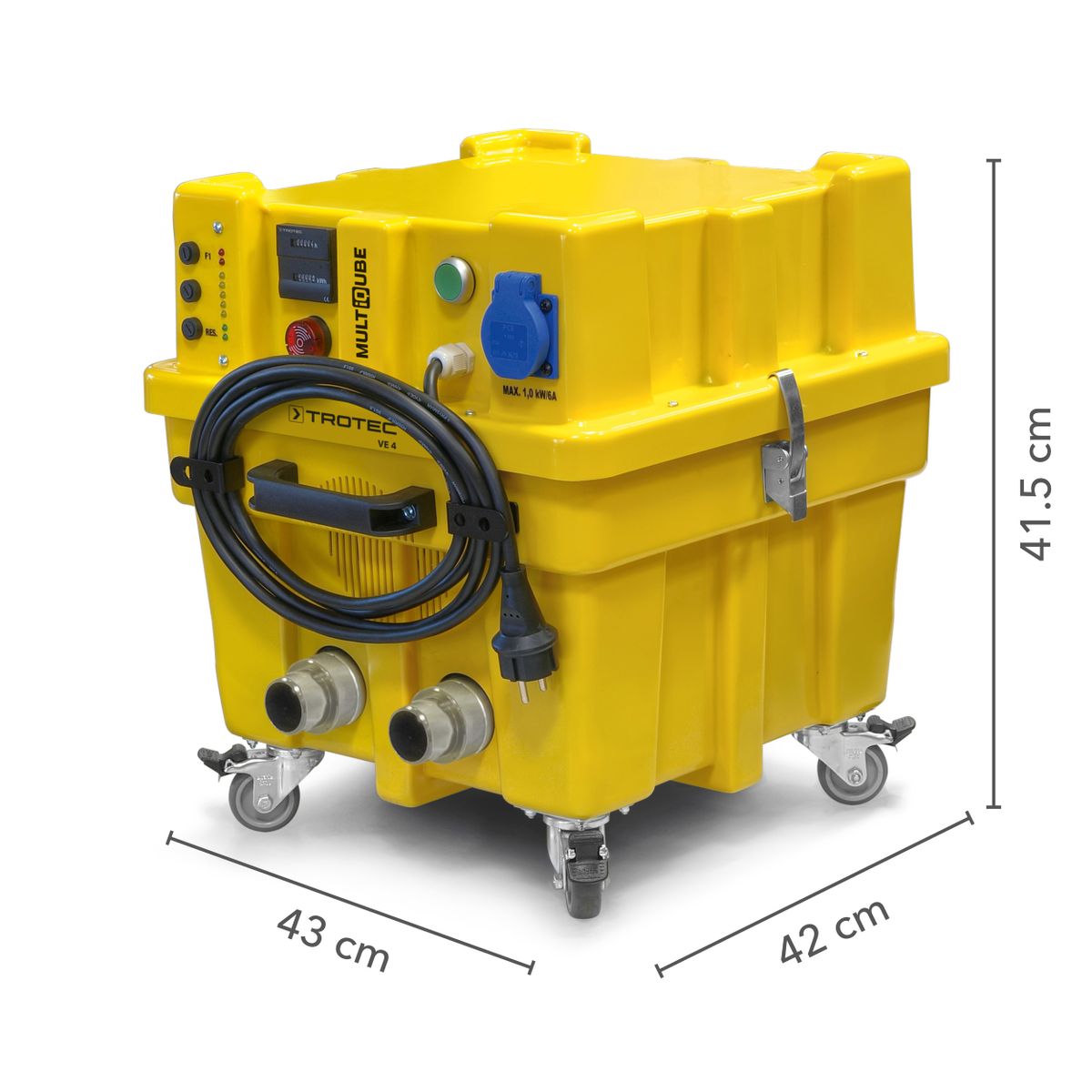

- Dimensions (L × W × H): 420 × 430 × 415 mm, weight: 25.5 kg
- Standard scope of delivery: 2 connection nozzles 38 mm (optionally 50 mm)
Genuine TROTEC equipment — CE marked and Made in Germany, supplied with full manufacturer documentation by BMB Rheinland, your authorised TROTEC distributor.
Planning a project or a larger requirement? Request a quote.
