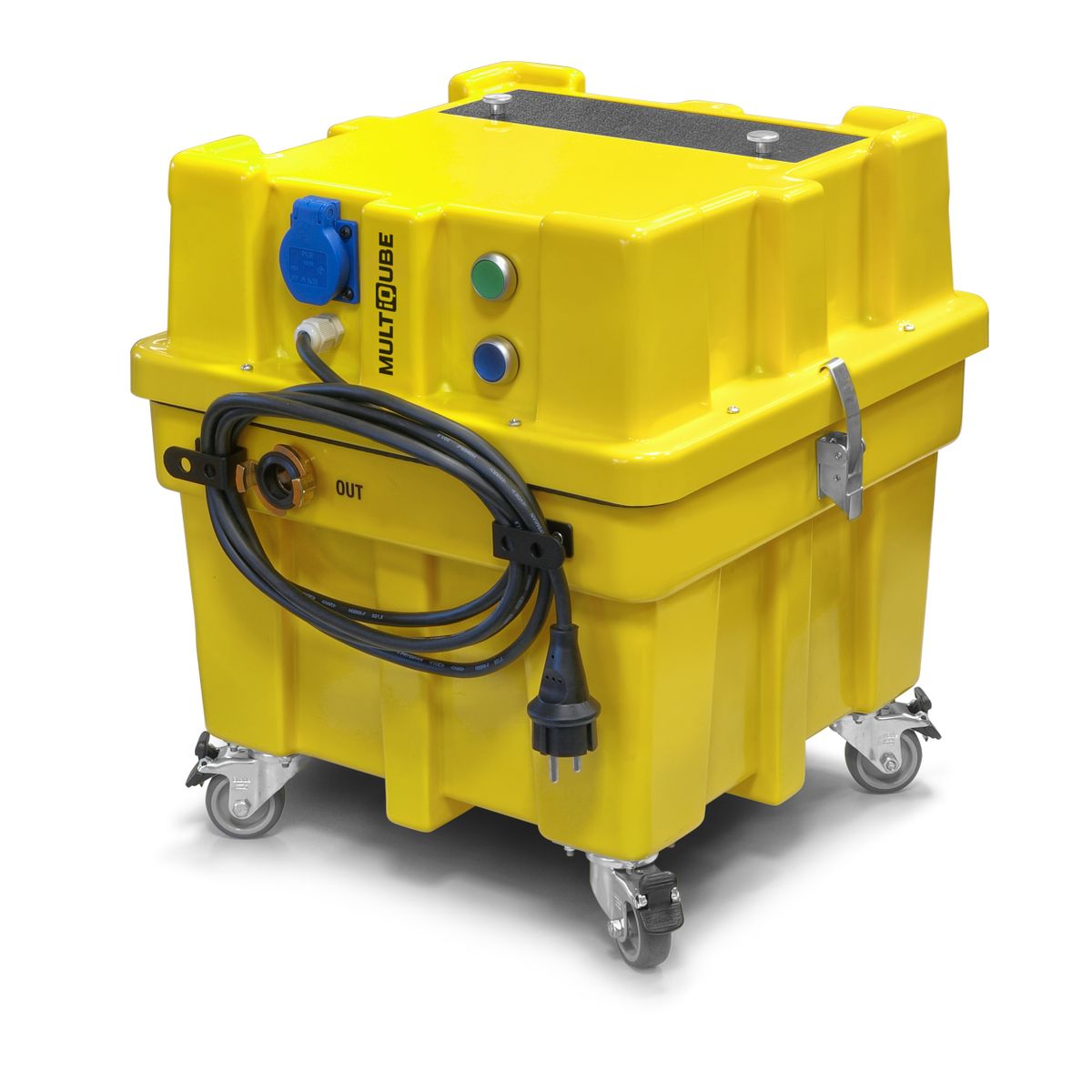

TROTEC WA 4i – Water Separator (MultiQube System)
- Original TROTEC · CE marked
Available to order: typical lead time 5–10 working days. We confirm the exact date after your order or enquiry.
The TROTEC WA 4i is the central water separator of the MultiQube system for suction-based insulation drying — an integral solution that combines all pre-HEPA filter stages in a single unit: flow-optimised filter compartment, micro-filter cassette with triple filter element and stainless steel demister. With a 17-litre collection volume and around 25% improved filter performance it protects the downstream drying unit on areas of up to 40 m², while making separate micro-filter housings unnecessary.
How it works

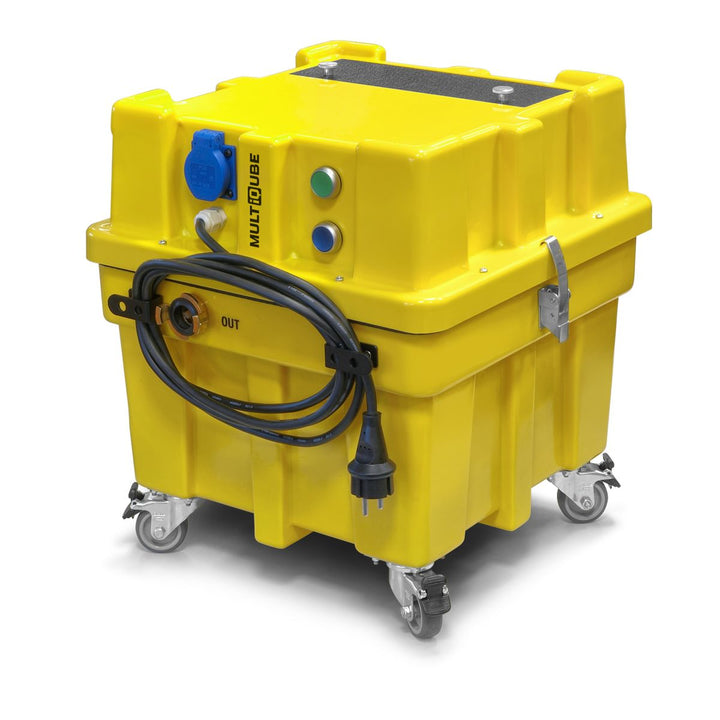

Installed between the suction openings and the drying turbine or blower, the WA 4i deflects the incoming moist air stream at an impact plate, where entrained water drops out and collects in the tank; the stainless steel demister and the F8 micro-filter cassette then separate fine mist and particles before the air continues to the blower. An overflow sensor automatically switches the connected drying unit off (and back on) so the separator never needs supervision. The two patented TTKwic quick couplings additionally accept the condensate hoses of up to two TROTEC dehumidifiers with condensate pump (hose connection 12 mm), turning the WA 4i into the central water discharge point of the whole installation.
Key benefits
- All pre-HEPA filter stages in one unit — no separate micro-filter housings; faster setup with less material and floor space.
- Around 25% better filter performance — flow-optimised filter compartment and micro-filter cassette with triple filter element.
- Unsupervised overflow protection — automatic cut-off and restart of the connected blower via overflow sensor, plus emergency stop switch.
- Central water discharge — two TTKwic quick couplings for up to two dehumidifiers with condensate pump.
- Service-friendly details — residual water drain, quick-release maintenance fasteners, integrated cable and cable rewind, castors with parking brakes.
- Light and durable — 11.3 kg, impact-resistant, 100% recyclable material, stackable with all MultiQube modules.
Typical applications

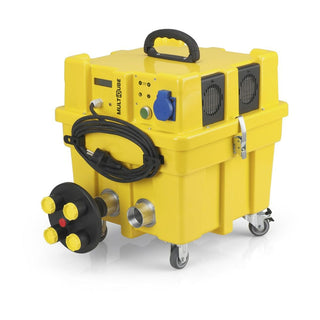

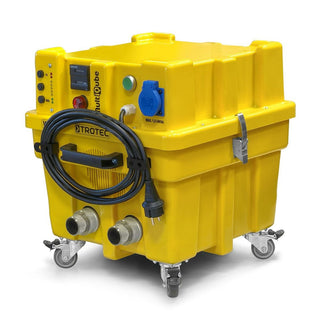

- Suction-based insulation layer drying with VX and VE drying units
- Central condensate collection in multi-device drying installations
- Water damage restoration in residential and commercial buildings
Technical data
- Article number: 6.100.000.006
- EAN: 4052138003046
- Collection volume: 17 l
- Air hose connections: 3
- Filter equipment: filter class F8, fine filter cassette (internal), stainless steel demister
- Power supply: 230 V / 50 Hz, power consumption 320 W, recommended fuse 16 A
- TTKwic hose connection: 12 mm, for up to 2 dehumidifiers

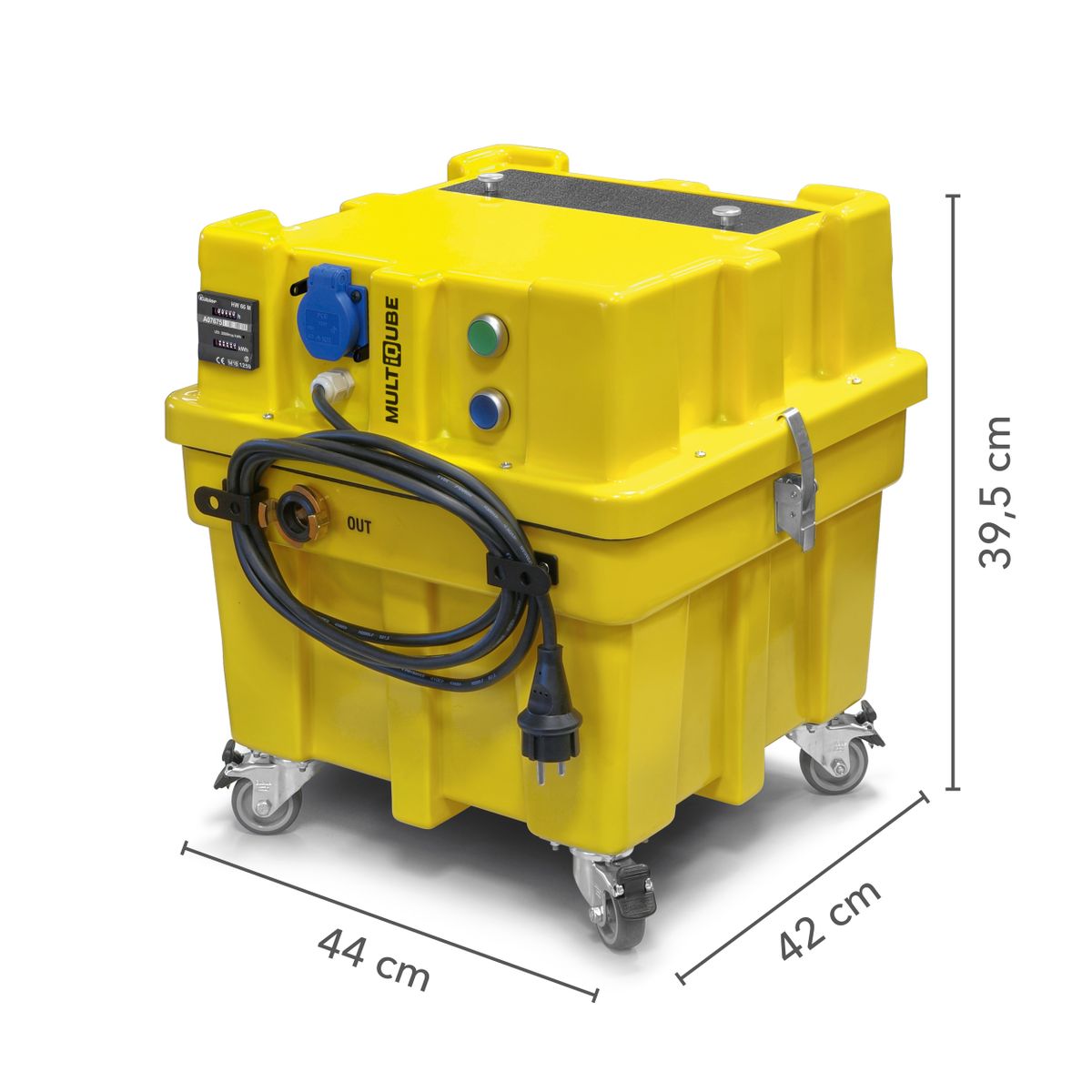

- Dimensions (L × W × H): 420 × 440 × 395 mm
- Weight: 11.3 kg, stackable plastic housing, plug CEE 7/7

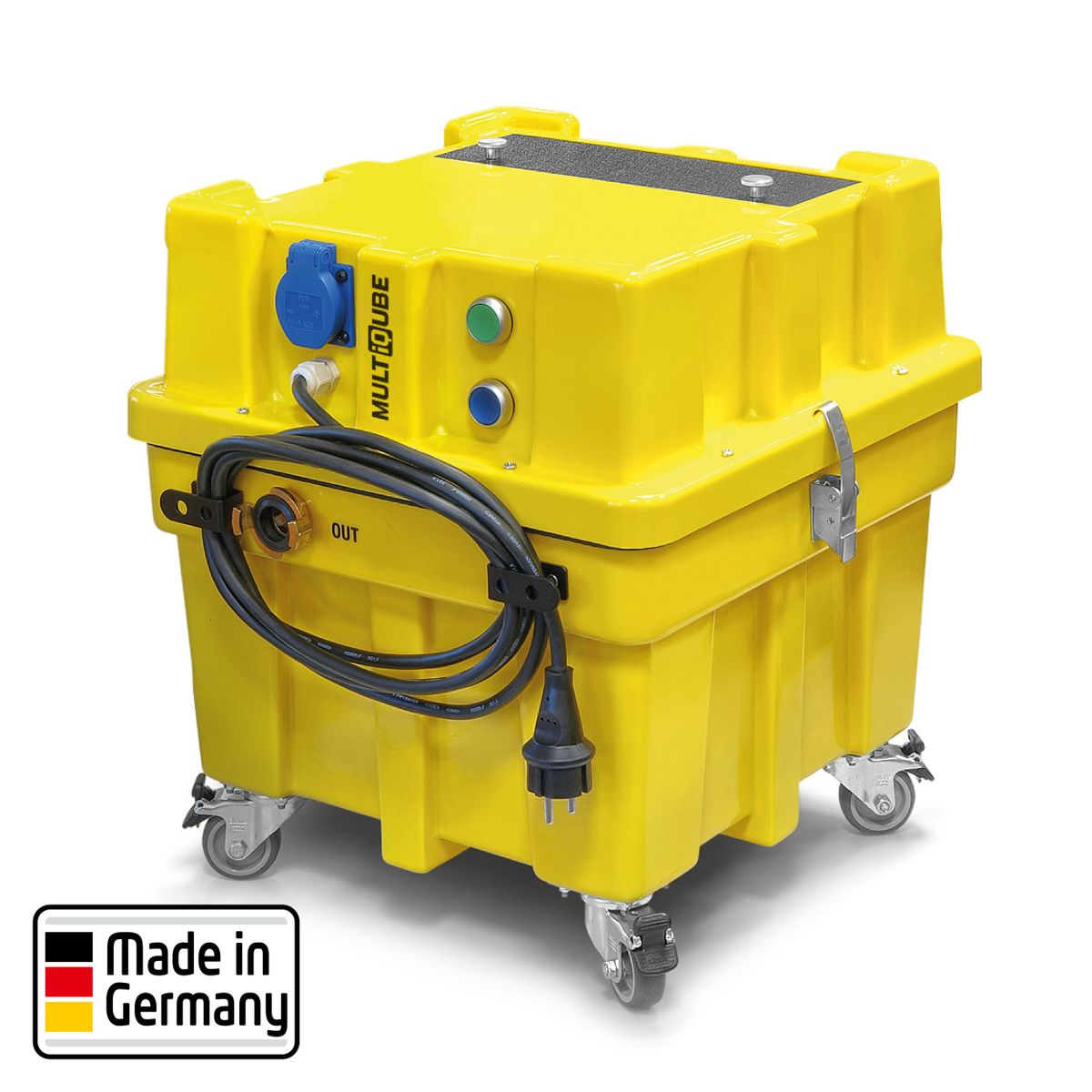

Genuine TROTEC equipment — CE marked and Made in Germany, supplied with full manufacturer documentation by BMB Rheinland, your authorised TROTEC distributor.
